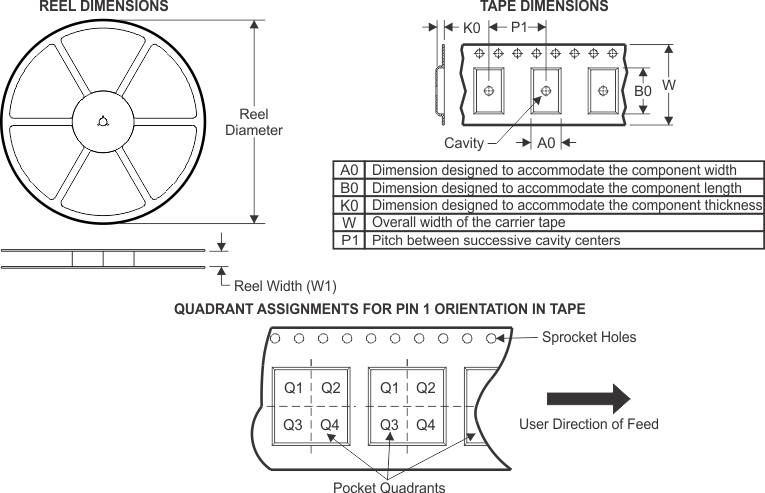

10.1 Tape and Reel Information

TPSM82912 TPSM82913 TPSM82913E
DevicePackage
Type		Package DrawingPinsSPQReel
Diameter (mm)		Reel
Width W1 (mm)		A0
(mm)		B0
(mm)		K0
(mm)		P1
(mm)		W
(mm)		Pin1
Quadrant
TPSM82912RDUR B0QFN RDU 28 1500 330 17.6 4.8 5.8 2.05 8 12 Q1
TPSM82913RDURB0QFNRDU28150033017.64.85.82.05812Q1
TPSM82913RDUR-ET B0QFN RDU 28 1500 330 17.6 4.8 5.8 2.05 8 12 Q1
TPSM82912 TPSM82913 TPSM82913E
DevicePackage TypePackage DrawingPinsSPQLength (mm)Width (mm)Height (mm)
TPSM82912RDUR B0QFN RDU 28 1500 336 336 48
TPSM82913RDURB0QFNRDU28150033633648
TPSM82913RDUR-ET B0QFN RDU 28 1500 336 336 48
