5.12 Typical Characteristics

TRSF3232E Driver pulse skew at TA = 25°C (RGT package)Figure 5-1 Driver pulse skew at TA = 25°C (RGT package)
TRSF3232E Receiver path high-to-low propagation delay, CL = 150pF (RGT package)Figure 5-3 Receiver path high-to-low propagation delay,
CL = 150pF
(RGT package)

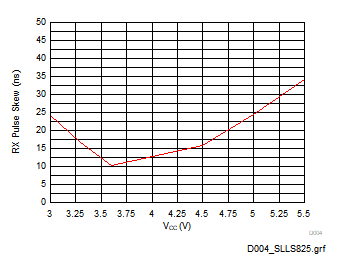

TRSF3232E Receiver path skew at TA = 25°C (tpHL-tpLH) (RGT package)Figure 5-2 Receiver path skew at TA = 25°C (tpHL-tpLH) (RGT package)
TRSF3232E Receiver path low-to-high propagation delay, CL = 150pF (RGT package)Figure 5-4 Receiver path low-to-high propagation delay,
CL = 150pF (RGT package)
