7.2.3 Application Curves

TS3USB221E Eye Pattern: 480-Mbps USB Signal With No Switch (Through Path)
Figure 7-2 Eye Pattern: 480-Mbps USB Signal With No Switch (Through Path)
TS3USB221E Eye Pattern: 480-Mbps USB Signal With Switch 2D Path
Figure 7-4 Eye Pattern: 480-Mbps USB Signal With Switch 2D Path

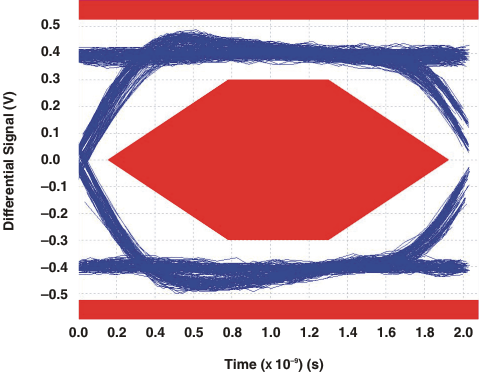

TS3USB221E Eye Pattern: 480-Mbps USB Signal With Switch 1D Path
Figure 7-3 Eye Pattern: 480-Mbps USB Signal With Switch 1D Path
