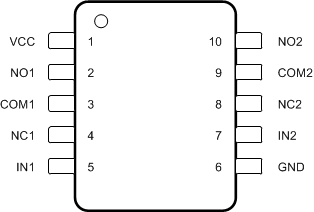

5 Pin Configuration and Functions

DGS Package
10-Pin VSSOP
Top View
TS5A22364-Q1 PinOut_01_SCDS361.gif

Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 VCC I Supply power
2 NO1 I/O Normally open (NO) signal path, switch 1
3 COM1 I/O Common signal path, switch 1
4 NC1 I/O Normally closed (NC) signal path, switch 1
5 IN1 I Digital control pin to connect COM1 to NO1, switch 1
6 GND — Ground
7 IN2 I Digital control pin to connect COM2 to NO2, switch 2
8 NC2 I/O Normally closed (NC) signal path, switch 2
9 COM2 I/O Common signal path, switch 2
10 NO2 I/O Normally open (NO) signal path, switch 2
