8.2.1 DRP in I2C Mode

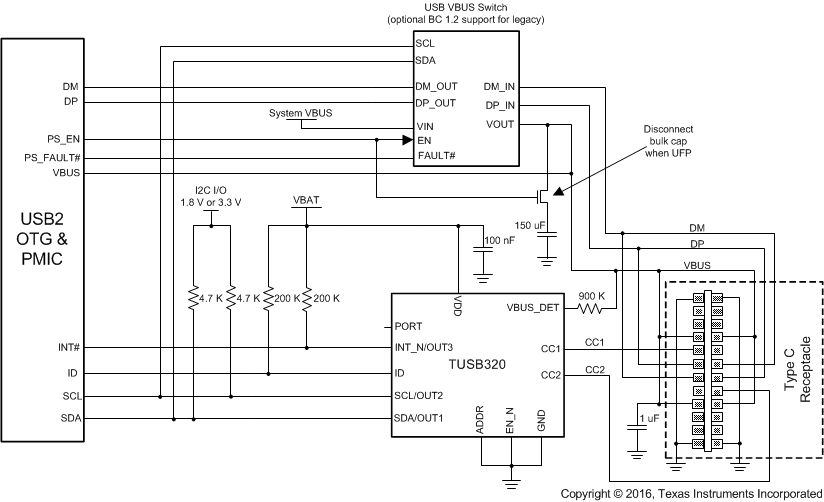

Figure 8-7 shows the TUSB320 device configured as a DRP in I2C mode.

GUID-08499989-32EB-4168-A194-854ECFF504A6-low.gifFigure 8-7 DRP in I2C Mode Schematic
