8.2.3 UFP in I2C Mode

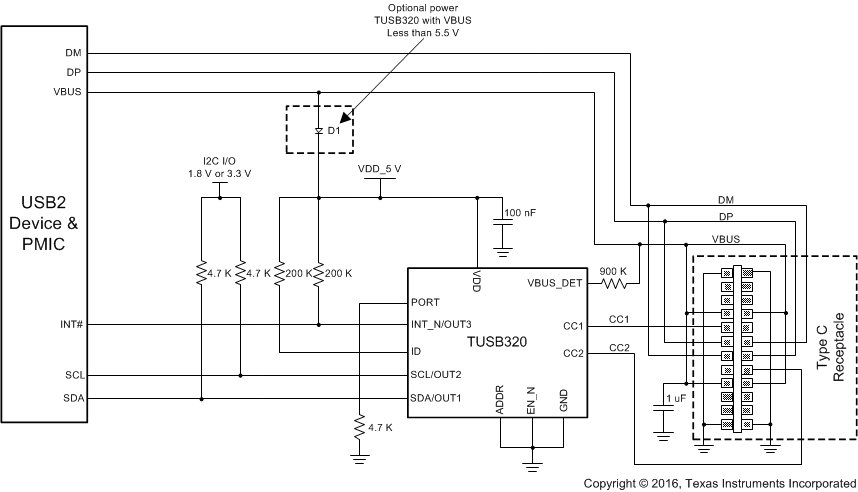

Figure 8-11 shows the TUSB320 device configured as a DFP in I2C mode.

GUID-8287A805-839B-424E-981F-0BF310A26A38-low.gifFigure 8-11 UFP in I2C Mode Schematic
