7.2.4 VBUS Power Switch Implementation

This particular example uses the TI TPS2561 dual-channel precision adjustable current-limited power switch. For details on this power switch or other power switches available from TI, refer to www.ti.com.

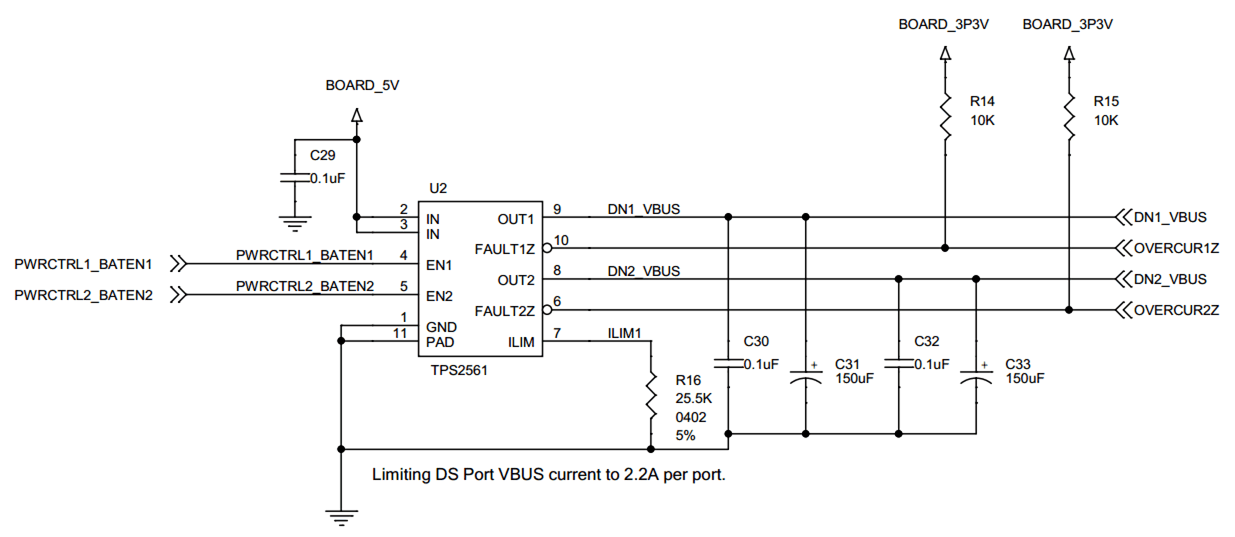

TUSB4020BI Power Switch Implementation SchematicFigure 7-7 Power Switch Implementation Schematic
