9.2.3.3 Application Circuits with Output Stage Negative Bias

When parasitic inductances are introduced by nonideal PCB layout and long package leads (such as TO-220 and TO-247 type packages), ringing in the gate-source drive voltage of the power transistor could occur during high di/dt and dv/dt switching. If the ringing is over the threshold voltage, unintended turn-on and shoot-through could occur. Applying a negative bias on the gate drive is a popular way to keep such ringing below the threshold. A few examples of implementing negative gate-drive bias follow.

Figure 9-4 shows the first example with negative bias turn-off on the output using a Zener diode on the isolated power-supply output stage. The negative bias is set by the Zener diode voltage. If the isolated power supply is equal to 20 V, the turn-off voltage is –5.1 V and the turn-on voltage is 20 V – 5.1 V ≈ 15 V.

UCC5310 UCC5320 UCC5350 UCC5390 Negative Bias With Zener Diode on Iso-Bias Power-Supply Output Figure 9-4 Negative Bias With Zener Diode on Iso-Bias Power-Supply Output

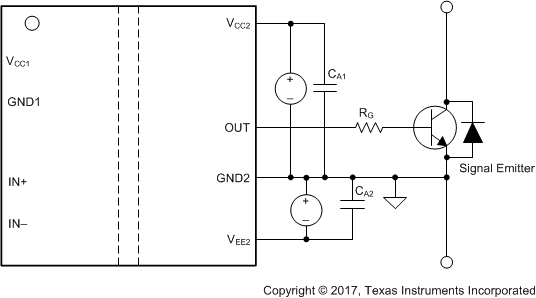

Figure 9-5 shows another example which uses two supplies (or single-input, double-output power supply). The power supply across VCC2 and GND2 determines the positive drive output voltage and the power supply across VEE2 and GND2 determines the negative turn-off voltage. This solution requires more power supplies than the first example, however, it provides more flexibility when setting the positive and negative rail voltages.

UCC5310 UCC5320 UCC5350 UCC5390 Negative Bias With Two Iso-Bias Power Supplies (UCC5320E and UCC5390E) Figure 9-5 Negative Bias With Two Iso-Bias Power Supplies (UCC5320E and UCC5390E)
