11.2 Layout Example

Figure 11-1 shows a PCB layout example with the signals and key components labeled.

UCC5310 UCC5320 UCC5350 UCC5390 Layout Example
A. No PCB traces or copper are located between the primary and secondary side, which ensures isolation performance.
Figure 11-1 Layout Example

Figure 11-2 and Figure 11-3 show the top and bottom layer traces and copper.

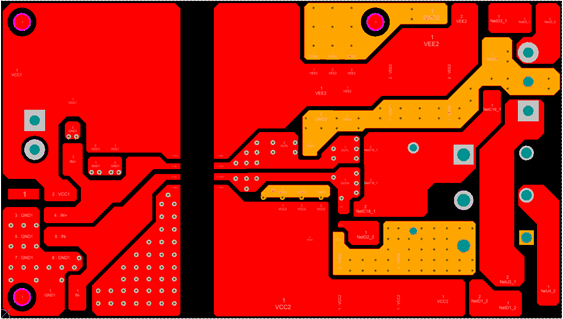

UCC5310 UCC5320 UCC5350 UCC5390 Top-Layer Traces and Copper Figure 11-2 Top-Layer Traces and Copper
UCC5310 UCC5320 UCC5350 UCC5390 Bottom-Layer Traces and Copper (Flipped) Figure 11-3 Bottom-Layer Traces and Copper (Flipped)

Figure 11-4 shows the 3D layout of the top view of the PCB.

UCC5310 UCC5320 UCC5350 UCC5390 3-D PCB View
A. The location of the PCB cutout between primary side and secondary sides ensures isolation performance.
Figure 11-4 3-D PCB View
