9.6.2 Phase Shifting

In most modes, it is possible to synchronize multiple DPWM modules using the phase shift signal. The phase shift signal has two possible sources. It can come from the Phase Shift register. This provides a fixed value, which is useful for an interleaved PFC, for example.

The phase shift value can also come from the filter output. In this case, the changes in the filter output causes changes in the phase relationship of two DPWM modules. This is useful for phase shifted full bridge topologies.

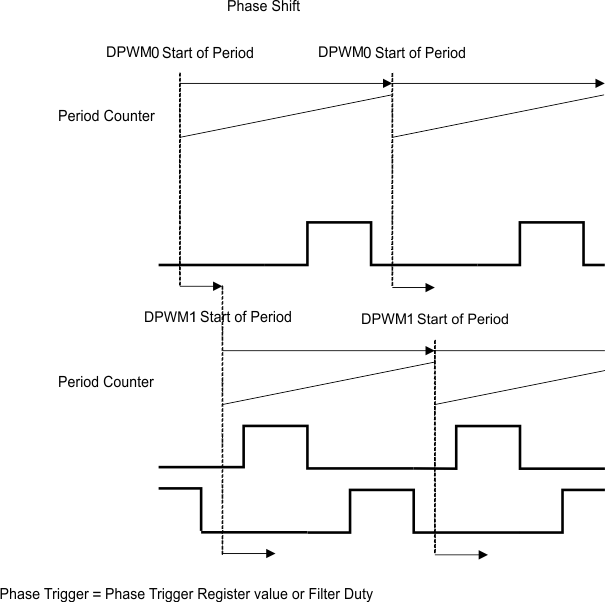

The following figure shows the mechanism of phase shift:

GUID-9D3BC70C-7AB9-40C8-9590-7051EF32E1AA-low.gifFigure 9-18 Phase Shift
