7.5.3 Data Format

The ADS101xL provides 12 bits of data in binary two's-complement format that is left-justified within the 16-bit Conversion register. A positive full-scale (+FS) input produces an output code of 7FFh and a negative full-scale (–FS) input produces an output code of 800h. The output clips at these codes for signals that exceed full-scale. Table 7-3 summarizes the ideal output codes for different input signals. Figure 7-12 shows code transitions versus input voltage.

Table 7-3 Input Signal Versus Ideal Output Code
INPUT SIGNAL
VIN = (VAINP – VAINN)		 IDEAL OUTPUT CODE(1)
≥ +FS (211 – 1) / 211 7FFh
+FS / 211 001h
0 000h
–FS / 211 FFFh
≤ –FS 800h
(1) Excludes the effects of noise, INL, offset, and gain errors.
The D[11:0] bits of the Conversion register are shown.

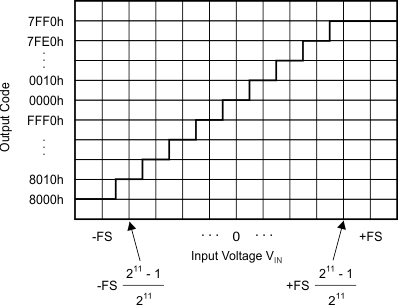

GUID-8438E15E-E4DC-4D30-AE96-08A1F6D81FC8-low.gif Figure 7-12 Code Transition Diagram
Note:

Single-ended signal measurements, where VAINN = 0 V and VAINP = 0 V to +FS, only use the positive code range from 000h to 7FFh. However, because of device offset, the ADS101xL can still output negative codes if VAINP is close to 0 V.
