7.4.5.2 Decimate-by-4 Mode

In this mode, the DECIMATE_2_EN, DECIMATE_4_EN, and FILT_EN register bits must be set, and the filter coefficients should be configured. Figure 5-1 shows a typical filter response in decimate-by-4 mode for the filter coefficient of set 1 (default) and set 2. Note that the output data rate is reduced by a factor of 4 as compared to default mode for the given clock input frequency.

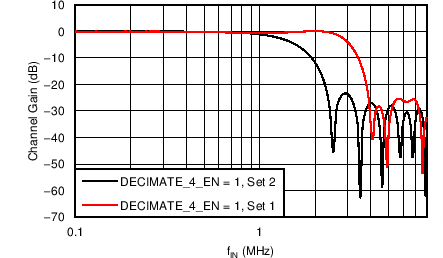

AFE5401-EP Decimate-by-4 Filter Response (fS = 12.5 MHz)
A. Set 1: C1 = 5, C2 = 2, C3 = –13, C4 = –2, C5 = 38, and C6 = 66. Set 2: C1 = –5, C2 = –2, C3 = 7, C4 = 19, C5 = 30, and C6 = 34.
Figure 7-16 Decimate-by-4 Filter Response (fS = 12.5 MHz)#SBAS6192806
