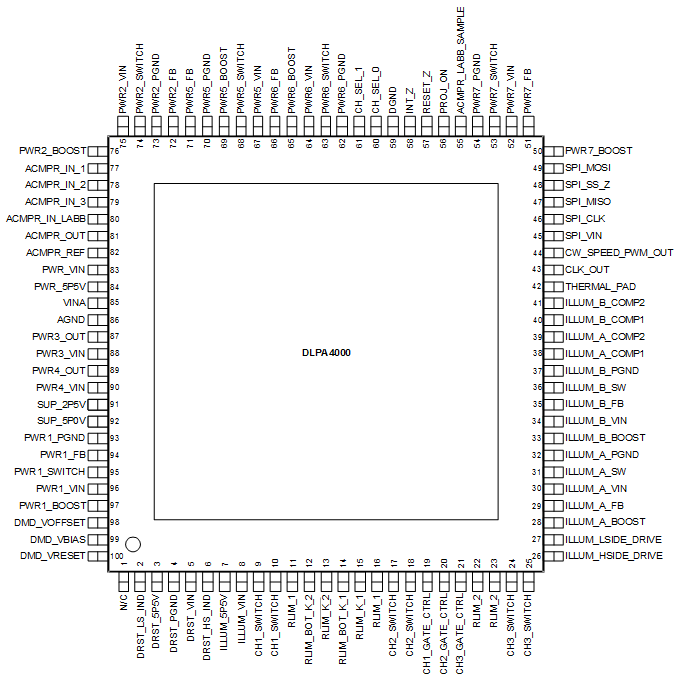

6 Pin Configuration and Functions

PFD Package
100-Pin HTQFP
Top View
DLPA4000 Pin_out.gif

Pin Functions

PIN I/O DESCRIPTION
N/C 1 — No connect
DRST_LS_IND 2 I/O Connection for the DMD SMPS-inductor (low-side switch).
DRST_5P5V 3 O Filter pin for LDO DMD. Power supply for internal DMD reset regulator, typical 5.5 V.
DRST_PGND 4 GND Power ground for DMD SMPS. Connect to ground plane.
DRST_VIN 5 P Power supply input for LDO DMD. Connect to system power.
DRST_HS_IND 6 I/O Connection for the DMD SMPS-inductor (high-side switch).
ILLUM_5P5 V 7 O Filter pin for LDO ILLUM. Power supply for internal ILLUM block, typical 5.5 V.
ILLUM_VIN 8 P Supply input of LDO ILLUM. Connect to system power.
CH1_SWITCH 9 I Low-side MOSFET switch for LED Cathode. Connect to RGB LED assembly.
CH1_SWITCH 10 I Low-side MOSFET switch for LED Cathode. Connect to RGB LED assembly.
RLIM_1 11 O Connection to LED current sense resistor for CH1 and CH2.
RLIM_BOT_K_2 12 I Kelvin sense connection to ground side of LED current sense resistor.
RLIM_K_2 13 I Kelvin sense connection to top side of current sense resistor.
RLIM_BOT_K_1 14 I Kelvin sense connection to ground side of LED current sense resistor.
RLIM_K_1 15 I Kelvin sense connection to top side of current sense resistor.
RLIM_1 16 O Connection to LED current sense resistor for CH1 and CH2.
CH2_SWITCH 17 I Low-side MOSFET switch for LED cathode. Connect to RGB LED assembly.
CH2_SWITCH 18 I Low-side MOSFET switch for LED cathode. Connect to RGB LED assembly.
CH1_GATE_CTRL 19 O Gate control of CH1 external MOSFET switch for LED cathode.
CH2_GATE_CTRL 20 O Gate control of CH2 external MOSFET switch for LED cathode.
CH3_GATE_CTRL 21 O Gate control of CH3 external MOSFET switch for LED cathode.
RLIM_2 22 O Connection to LED current sense resistor for CH3.
RLIM_2 23 O Connection to LED current sense resistor for CH3.
CH3_SWITCH 24 I Low-side MOSFET switch for LED Cathode. Connect to RGB LED assembly.
CH3_SWITCH 25 I Low-side MOSFET switch for LED Cathode. Connect to RGB LED assembly.
ILLUM_HSIDE_DRIVE 26 O Gate control for external high-side MOSFET for ILLUM Buck converter.
ILLUM_LSIDE_DRIVE 27 O Gate control for external low-side MOSFET for ILLUM Buck converter.
ILLUM_A_BOOST 28 I Supply voltage for high-side N-channel MOSFET gate driver. A 100 nF capacitor (typical) must be connected between this pin and ILLUM_A_SW.
ILLUM_A_FB 29 I Input to the buck converter loop controlling ILED.
ILLUM_A_VIN 30 P Power input to the ILLUM Driver A.
ILLUM_A_SW 31 I/O Switch node connection between high-side NFET and low-side NFET. Serves as common connection for the flying high side MOSFET driver.
ILLUM_A_PGND 32 GND Ground connection to the ILLUM Driver A.
ILLUM_B_BOOST 33 I Supply voltage for high-side N-channel MOSFET gate driver.
ILLUM_B_VIN 34 P Power input to the ILLUM driver B.
ILLUM_B_FB 35 I Input to the buck converter loop controlling ILED.
ILLUM_B_SW 36 I/O Switch node connection between high-side NFET and low-side NFET.
ILLUM_B_PGND 37 GND Ground connection to the ILLUM driver B.
ILLUM_A_COMP1 38 I/O Connection node for feedback loop components
ILLUM_A_COMP2 39 I/O Connection node for feedback loop components
ILLUM_B_COMP1 40 I/O Connection node for feedback loop components
ILLUM_B_COMP2 41 I/O Connection node for feedback loop components
THERMAL_PAD 42 GND Thermal pad. Connect to clean system ground.
CLK_OUT 43 O Color wheel clock output
CW_SPEED_PWM_OUT 44 O Color wheel PWM output
SPI_VIN 45 I Supply for SPI interface
SPI_CLK 46 I SPI clock input
SPI_MISO 47 O SPI data output
SPI_SS_Z 48 I SPI chip select (active low)
SPI_MOSI 49 I SPI data input
PWR7_BOOST 50 I Charge-pump-supply input for the high-side MOSFET gate drive circuit. Connect 100 nF capacitor between PWR7_BOOST and PWR7_SWITCH pins.
PWR7_FB 51 I Converter feedback input. Connect to converter output voltage.
PWR7_VIN 52 P Power supply input for converter.
PWR7_SWITCH 53 I/O Switch node connection between high-side NFET and low-side NFET.
PWR7_PGND 54 GND Ground pin. Power ground return for switching circuit.
ACMPR_LABB_SAMPLE 55 I Control signal to sample voltage at ACMPR_IN_LABB.
PROJ_ON 56 I Input signal to enable/disable the IC and DLP projector.
RESET_Z 57 O Reset output to the DLP system (active low). Pin is held low to reset DLP system.
INT_Z 58 O Interrupt output signal (open drain, active low). Connect to pull-up resistor.
DGND 59 GND Digital ground. Connect to ground plane.
CH_SEL_0 60 I Control signal to enable either of CH1,2,3.
CH_SEL_1 61 I Control signal to enable either of CH1,2,3.
PWR6_PGND 62 GND Ground pin. Power ground return for switching circuit.
PWR6_SWITCH 63 I/O Switch node connection between high-side NFET and low-side NFET.
PWR6_VIN 64 P Power supply input for converter.
PWR6_BOOST 65 I Charge-pump-supply input for the high-side MOSFET gate drive circuit. Connect 100 nF capacitor between PWR6_BOOST and PWR6_SWITCH pins.
PWR6_FB 66 I Converter feedback input. Connect to output voltage.
PWR5_VIN 67 P Power supply input for converter.
PWR5_SWITCH 68 I/O Switch node connection between high-side NFET and low-side NFET.
PWR5_BOOST 69 I Charge-pump-supply input for the high-side MOSFET gate drive circuit. Connect 100nF capacitor between PWR5_BOOST and PWR5_SWITCH pins.
PWR5_PGND 70 GND Ground pin. Power ground return for switching circuit.
PWR5_FB 71 I Converter feedback input. Connect to output voltage.
PWR2_FB 72 I Converter feedback input. Connect to output voltage.
PWR2_PGND 73 GND Ground pin. Power ground return for switching circuit.
PWR2_SWITCH 74 I/O Switch node connection between high-side NFET and low-side NFET.
PWR2_VIN 75 P Power supply input for converter.
PWR2_BOOST 76 I Charge-pump-supply input for the high-side MOSFET gate drive circuit. Connect 100 nF capacitor between PWR2_BOOST and PWR2_SWITCH pins.
ACMPR_IN_1 77 I Input for analog sensor signal.
ACMPR_IN_2 78 I Input for analog sensor signal.
ACMPR_IN_3 79 I Input for analog sensor signal.
ACMPR_IN_LABB 80 I Input for ambient light sensor, sampled input
ACMPR_OUT 81 O Analog comparator out
ACMPR_REF 82 I Reference voltage input for analog comparator
PWR_VIN 83 P Power supply input for LDO_Bucks. Connect to system power.
PWR_5P5V 84 O Filter pin for LDO_BUCKS. Internal analog supply for buck converters, typical 5.5 V.
VINA 85 P Input voltage supply pin for Reference system.
AGND 86 GND Analog ground pin.
PWR3_OUT 87 O Filter pin for LDO_2 DMD/DLPC/AUX, typical 2.5 V.
PWR3_VIN 88 P Power supply input for LDO_2. Connect to system power.
PWR4_OUT 89 O Filter pin for LDO_1 DMD/DLPC/AUX, typical 3.3 V.
PWR4_VIN 90 P Power supply input for LDO_1. Connect to system power.
SUP_2P5V 91 O Filter pin for LDO_V2V5. Internal supply voltage, typical 2.5 V.
SUP_5P0V 92 O Filter pin for LDO_V5V. Internal supply voltage, typical 5 V.
PWR1_PGND 93 GND Ground pin. Power ground return for switching circuit.
PWR1_FB 94 I Converter feedback input. Connect to output voltage.
PWR1_SWITCH 95 I/O Switch node connection between high-side NFET and low-side NFET.
PWR1_VIN 96 P Power supply input for converter.
PWR1_BOOST 97 I Charge-pump-supply input for the high-side MOSFET gate drive circuit. Connect 100nF capacitor between PWR1_BOOST and PWR1_SWITCH pins.
DMD_VOFFSET 98 O VOFS output rail. Connect to ceramic capacitor.
DMD_VBIAS 99 O VBIAS output rail. Connect to ceramic capacitor.
DMD_VRESET 100 O VRESET output rail. Connect to ceramic capacitor.
