6.2.1.1 TPI Network Circuit

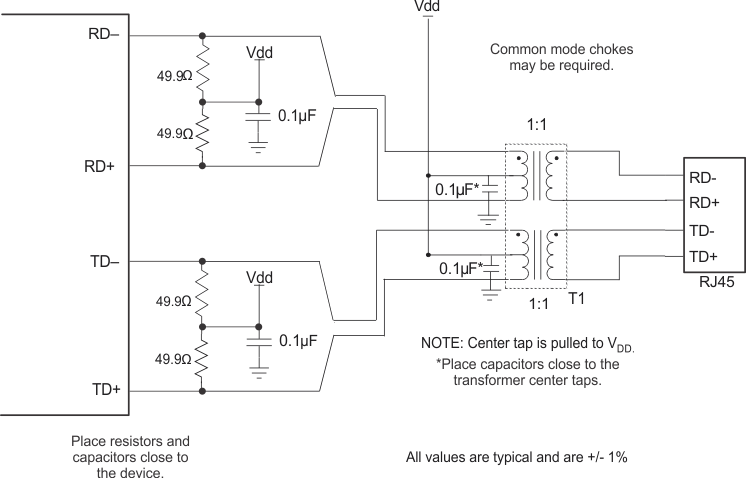

Figure 6-2 shows the recommended circuit for a 10/100 Mbps twisted pair interface. It is important that the user realize that variations with PCB and component characteristics requires that the application be tested to ensure that the circuit meets the requirements of the intended application.

DP83848-EP twisted_pair_interface.gifFigure 6-2 10/100 Mbps Twisted Pair Interface
