6.14 Typical Performance Characteristics

(NDT & K Packages)
LM137QML 20122416.png
Figure 1. Load Regulation
LM137QML 20122418.png

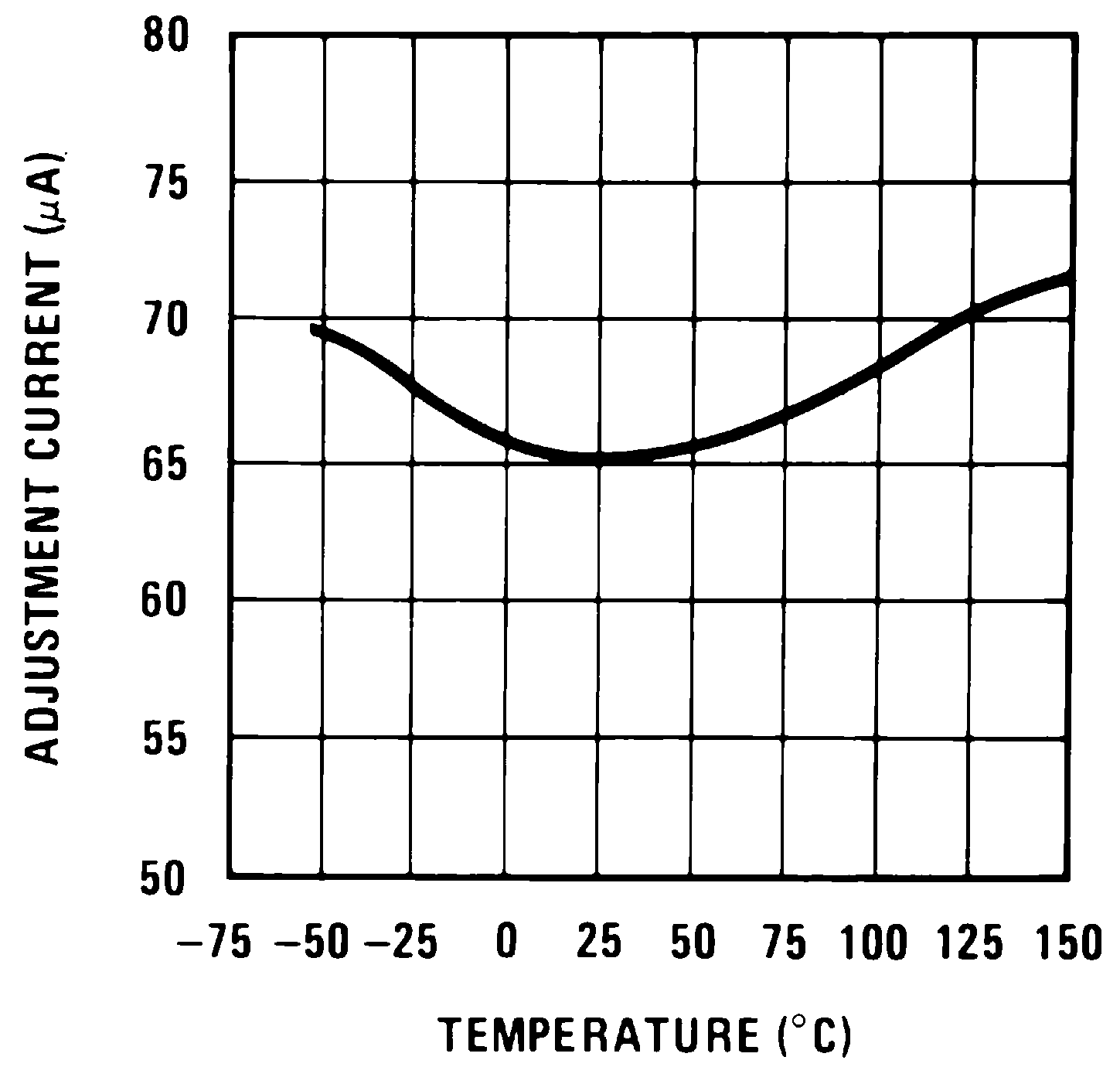

Figure 3. Adjustment Current
LM137QML 20122420.png

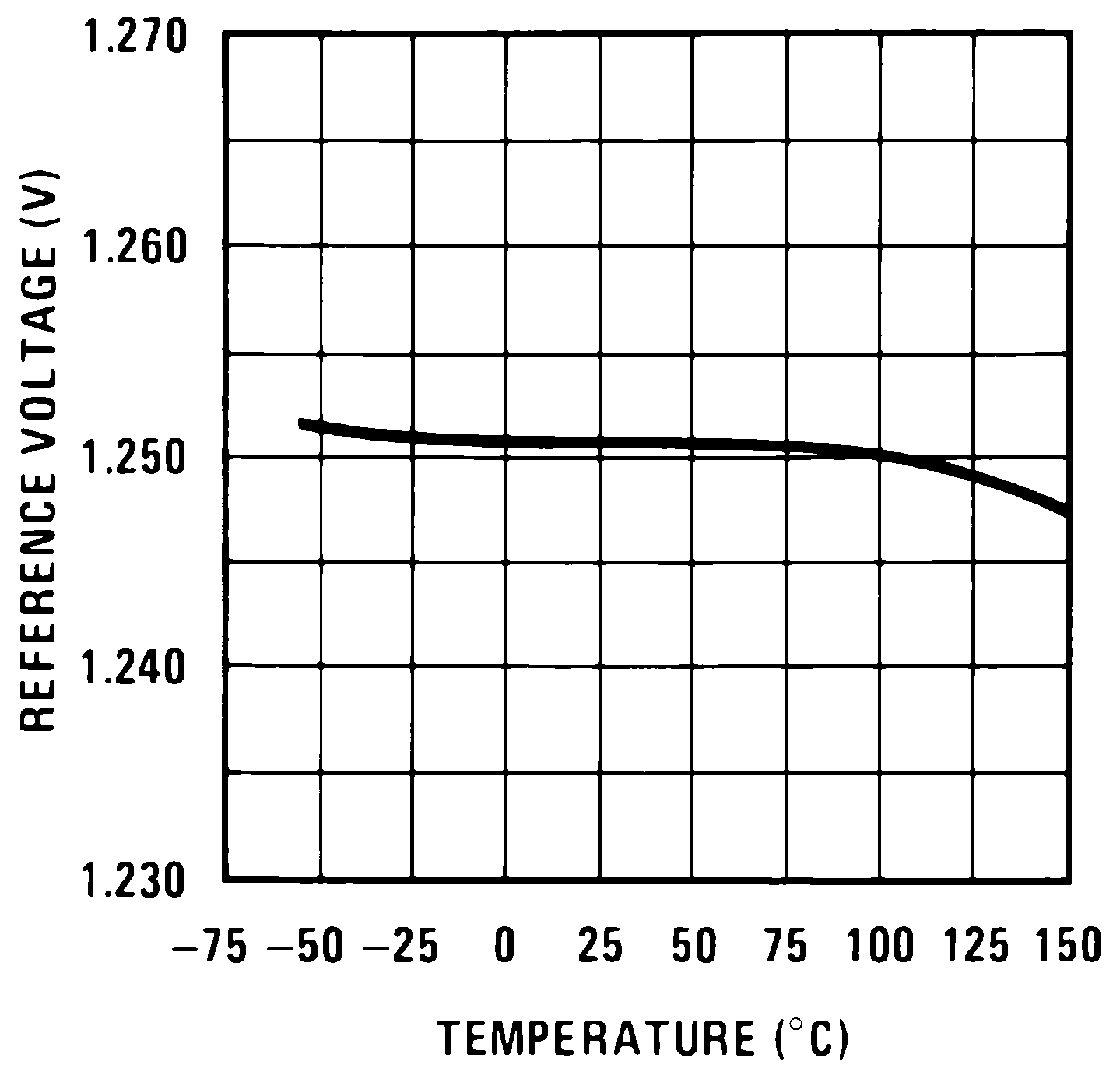

Figure 5. Temperature Stability
LM137QML 20122422.png

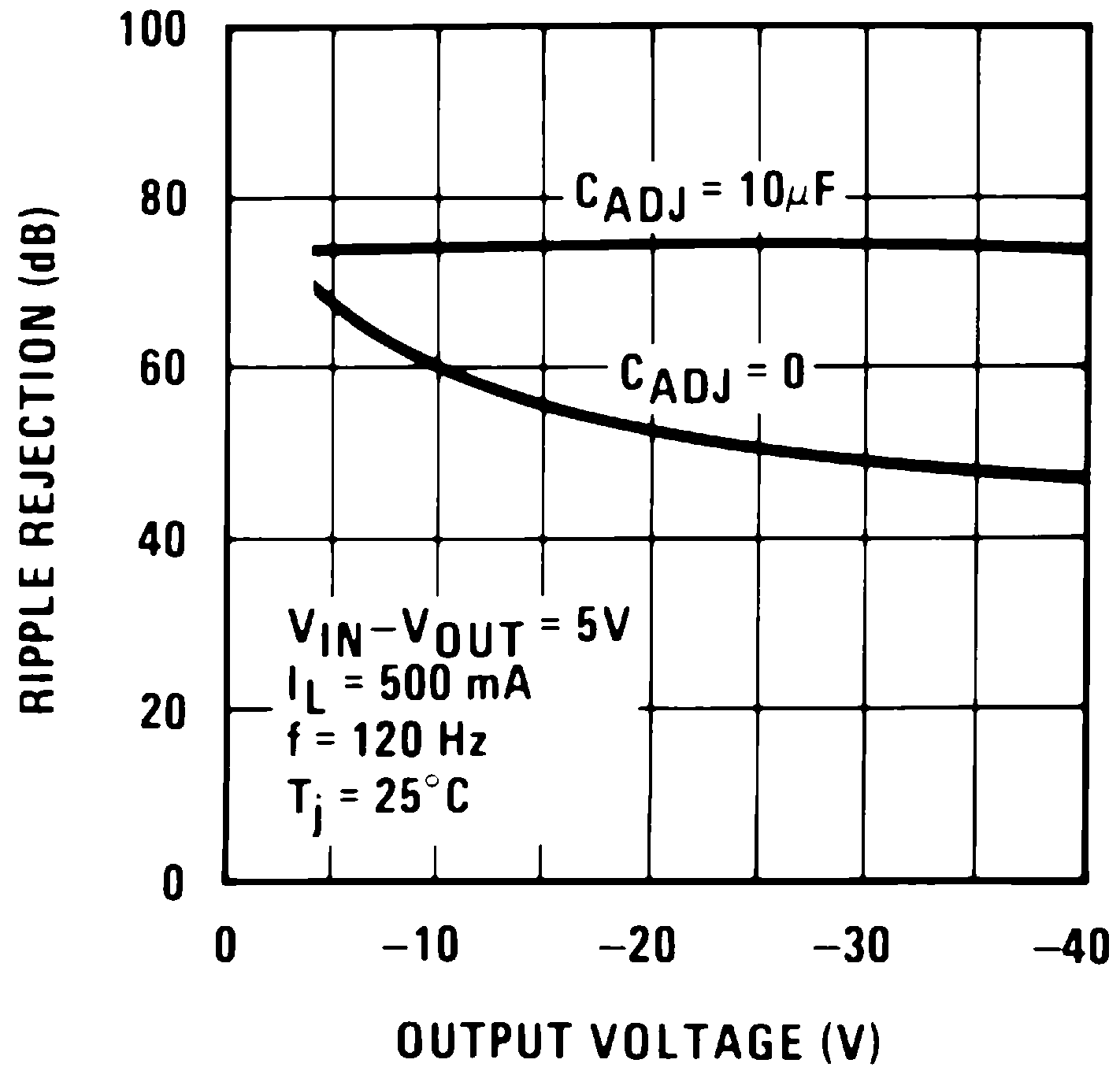

Figure 7. Ripple Rejection
LM137QML 20122424.png

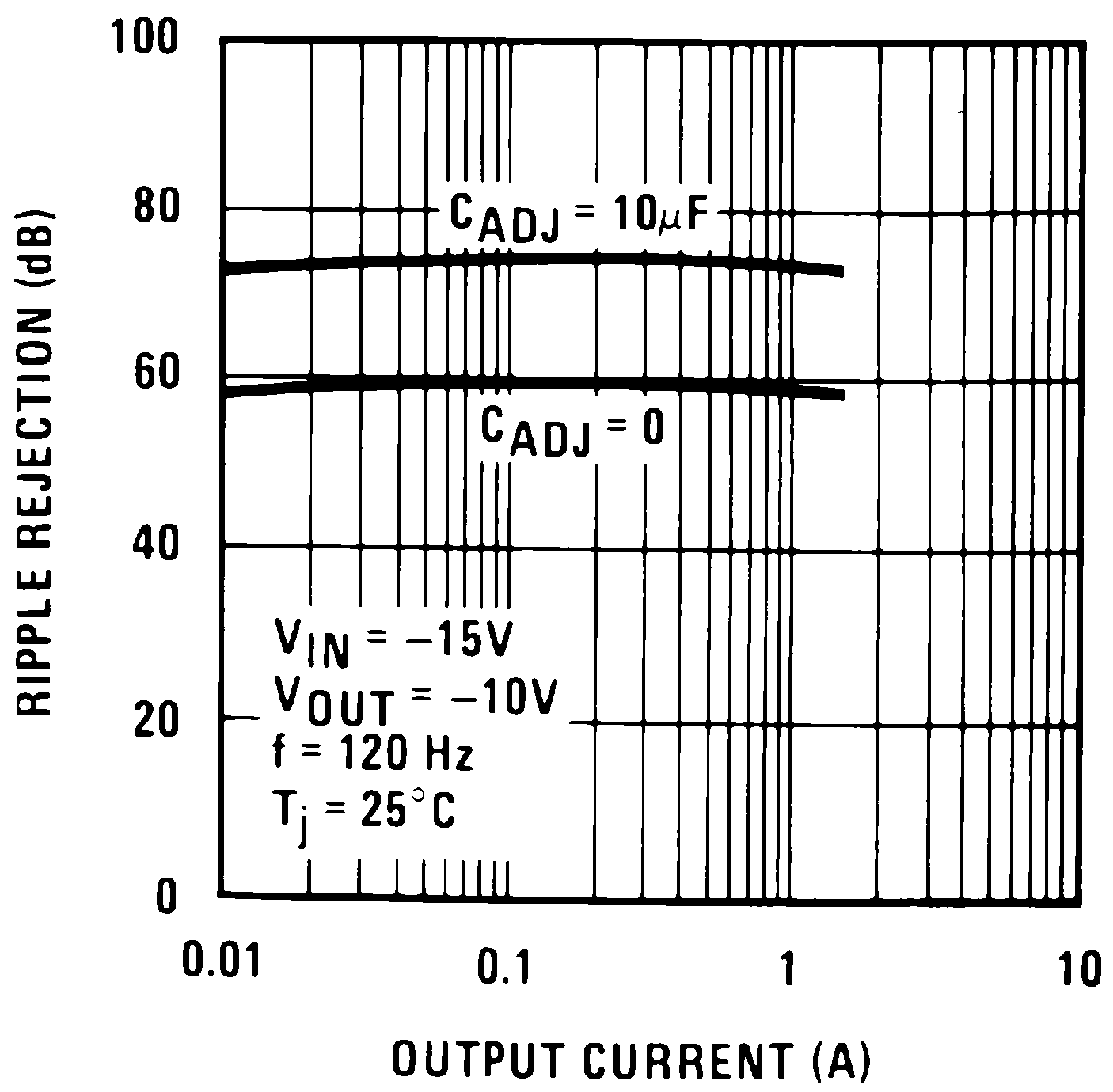

Figure 9. Ripple Rejection
LM137QML 20122426.png

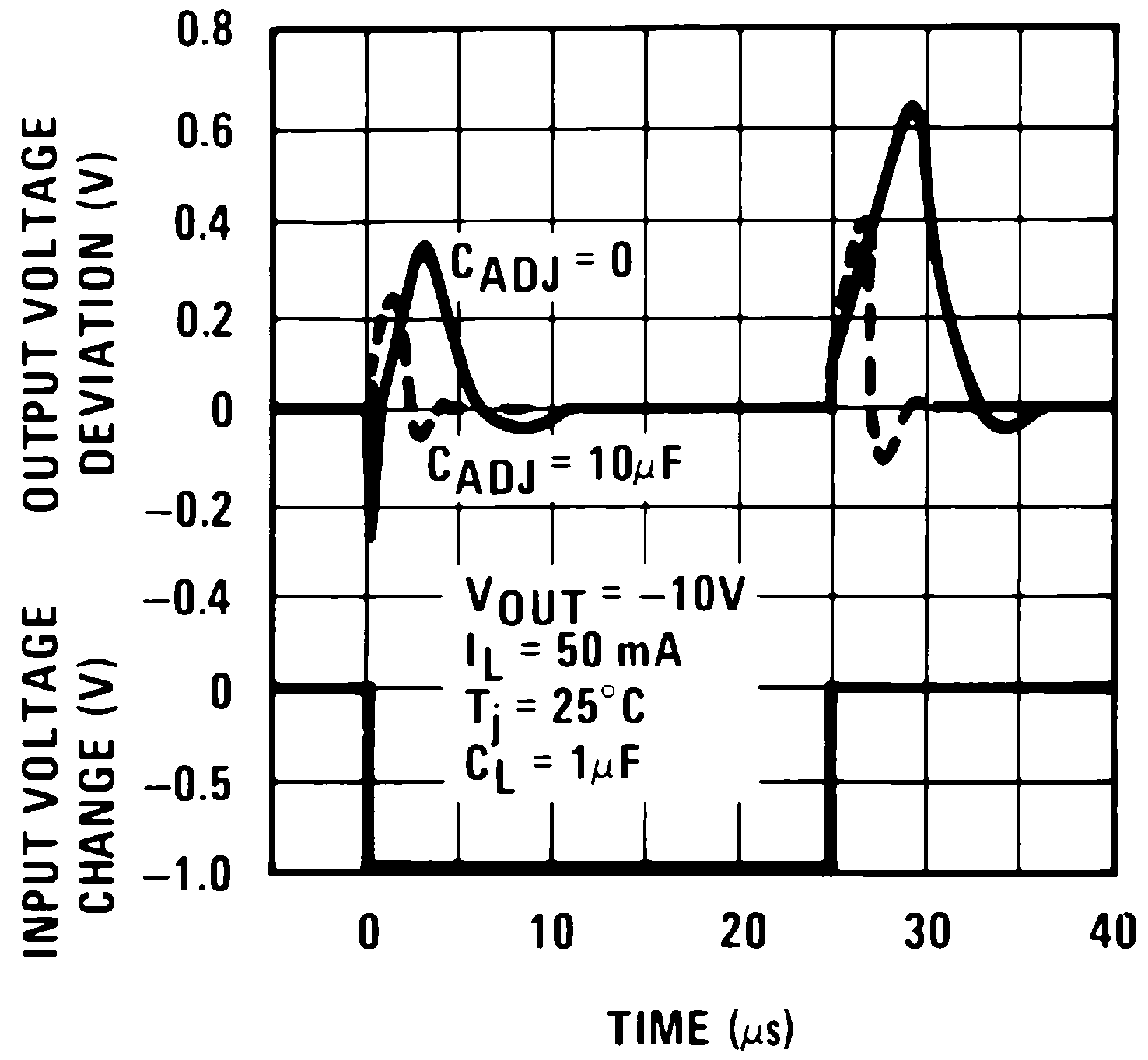

Figure 11. Line Transient Response
LM137QML 20122417.png

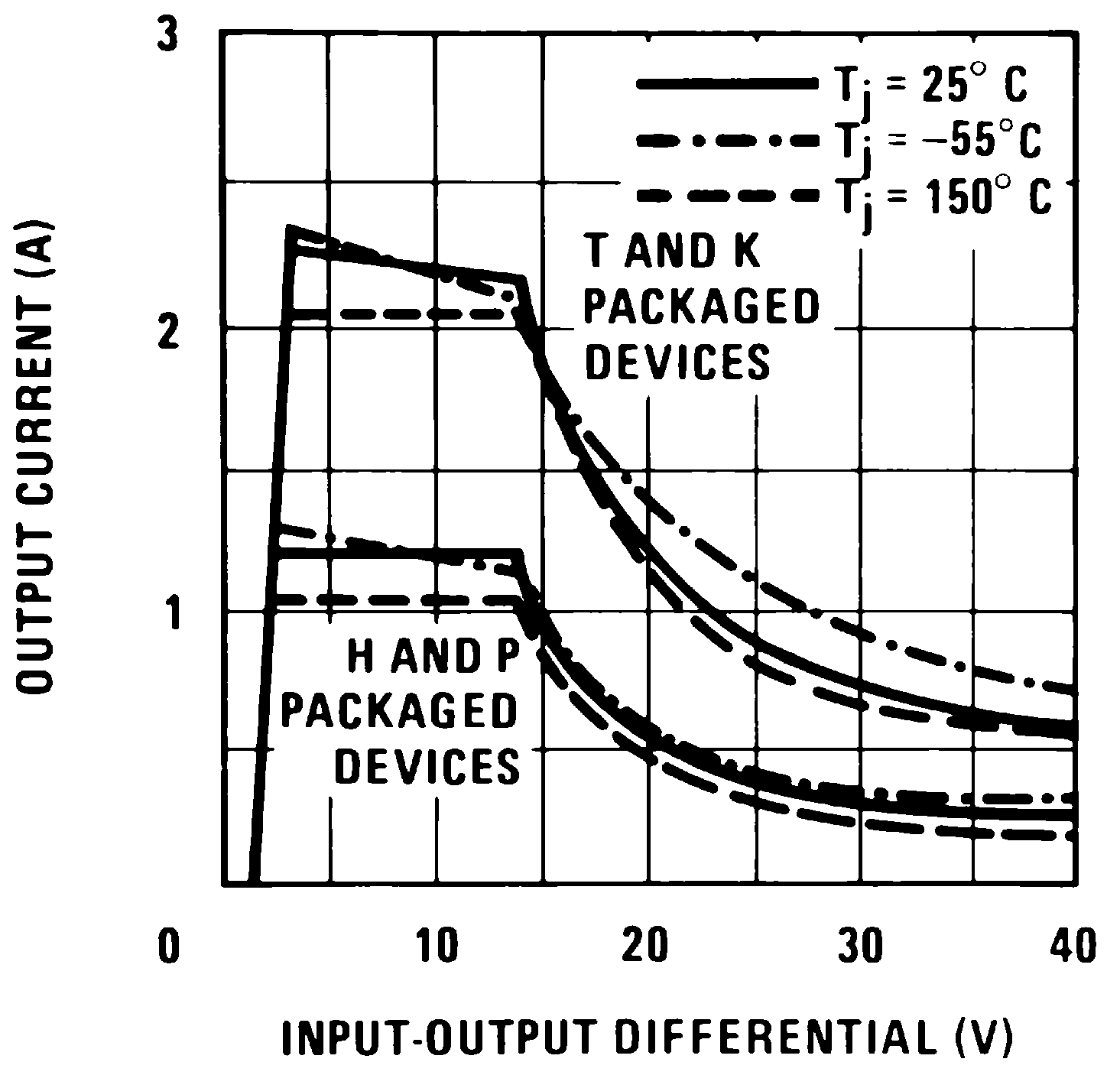

Figure 2. Current Limit
LM137QML 20122419.png

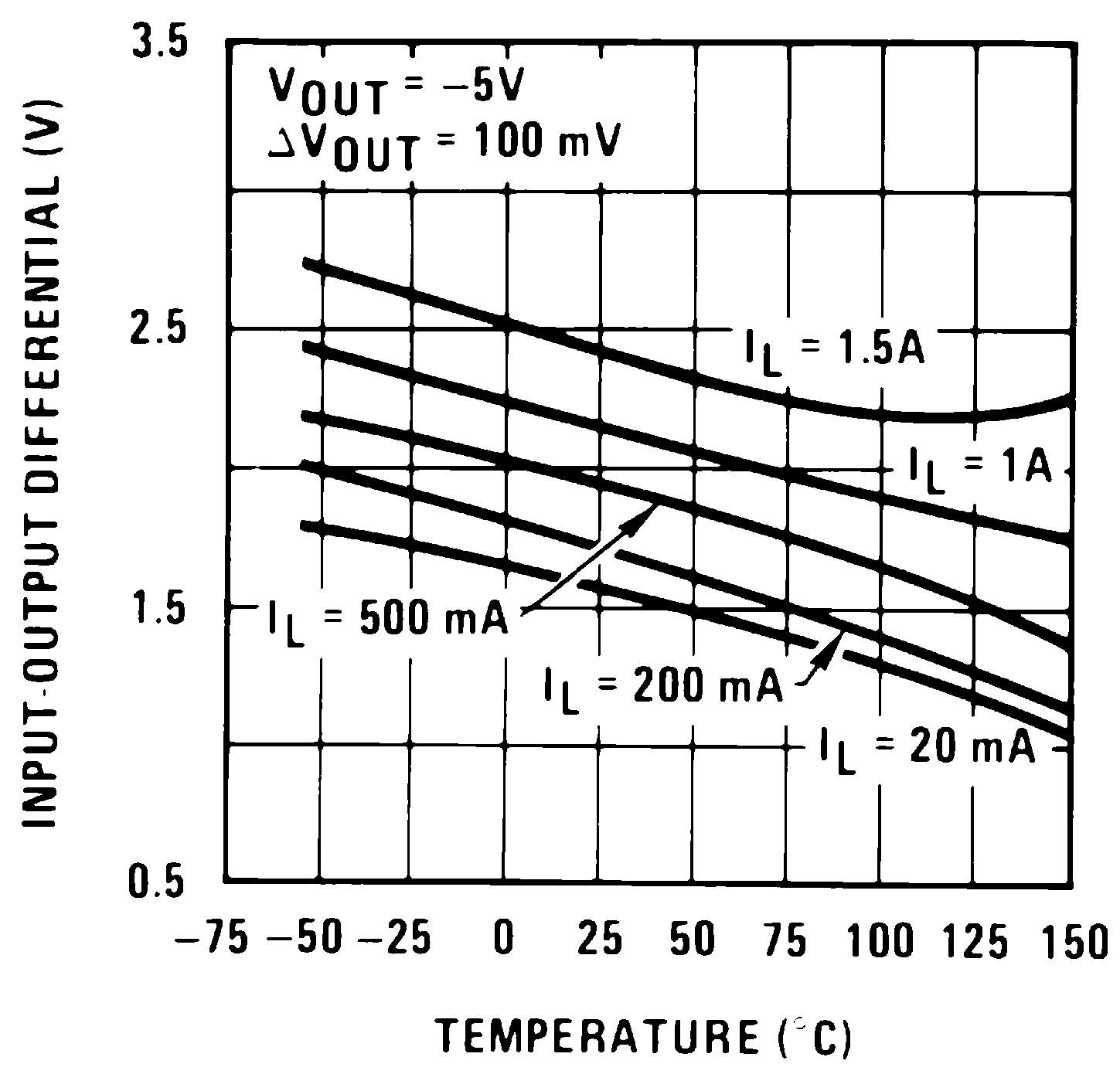

Figure 4. Dropout Voltage
LM137QML 20122421.png
Figure 6. Minimum Operating Current
LM137QML 20122423.png

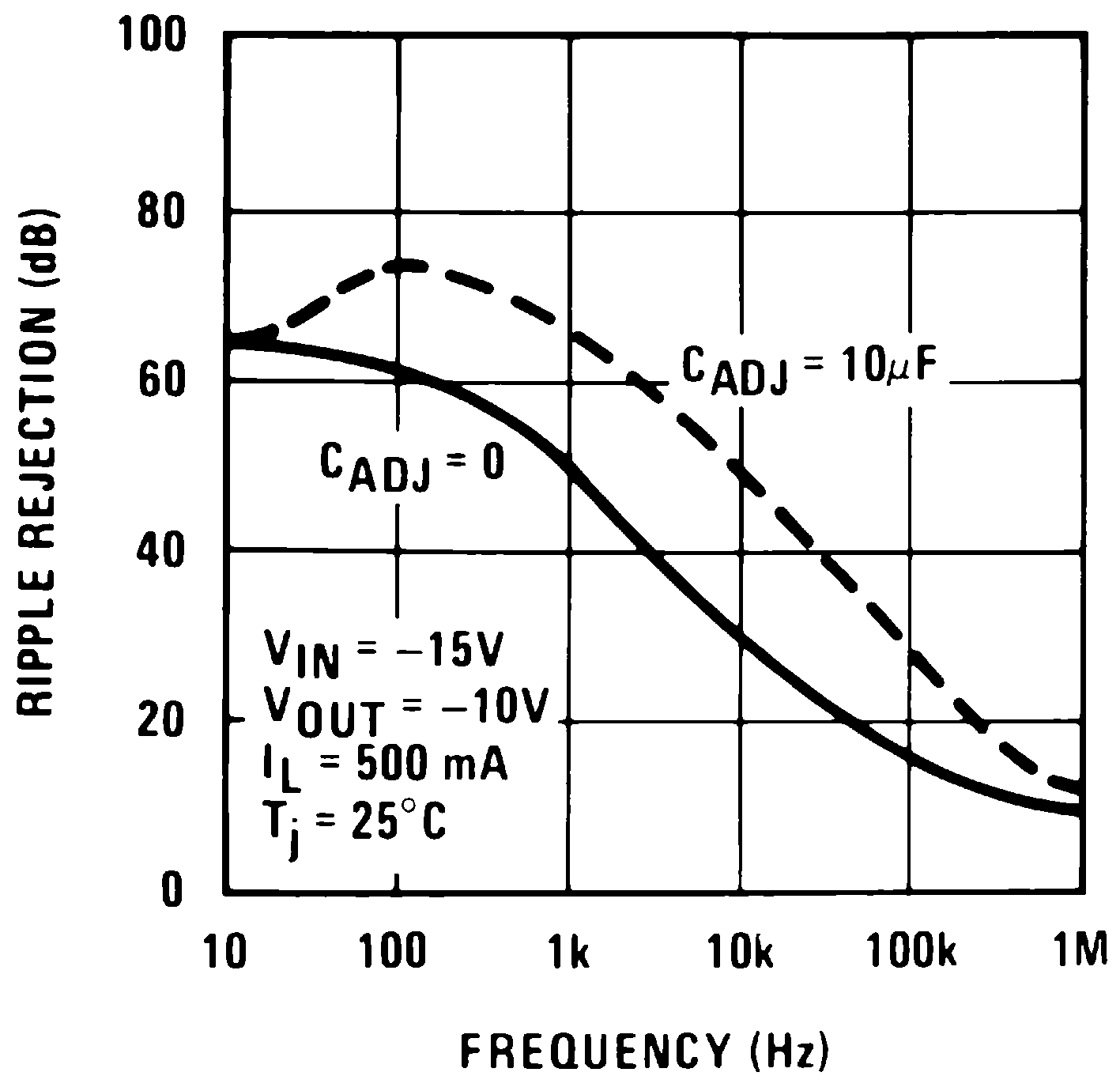

Figure 8. Ripple Rejection
LM137QML 20122425.png

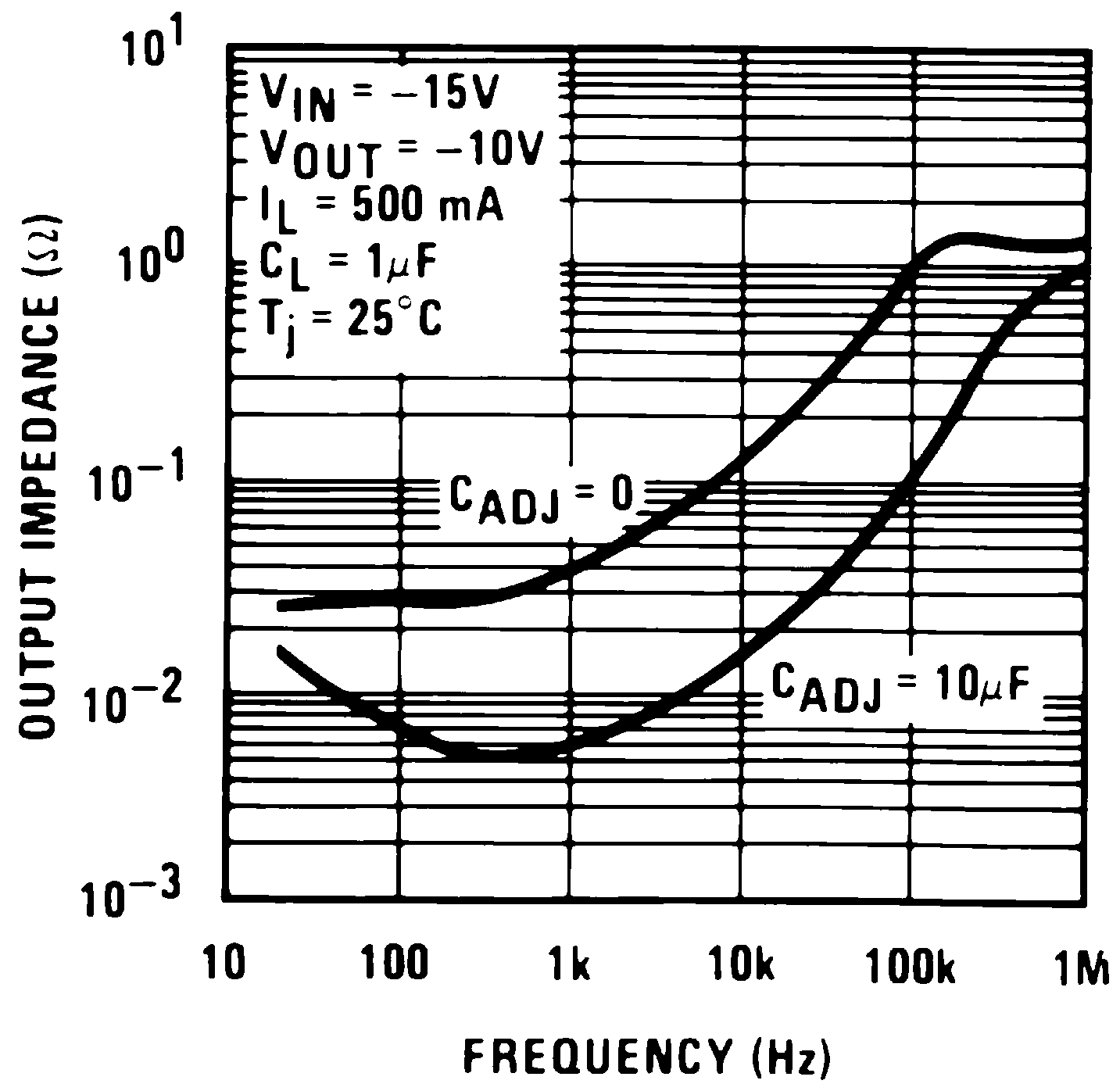

Figure 10. Output Impedance
LM137QML 20122427.png

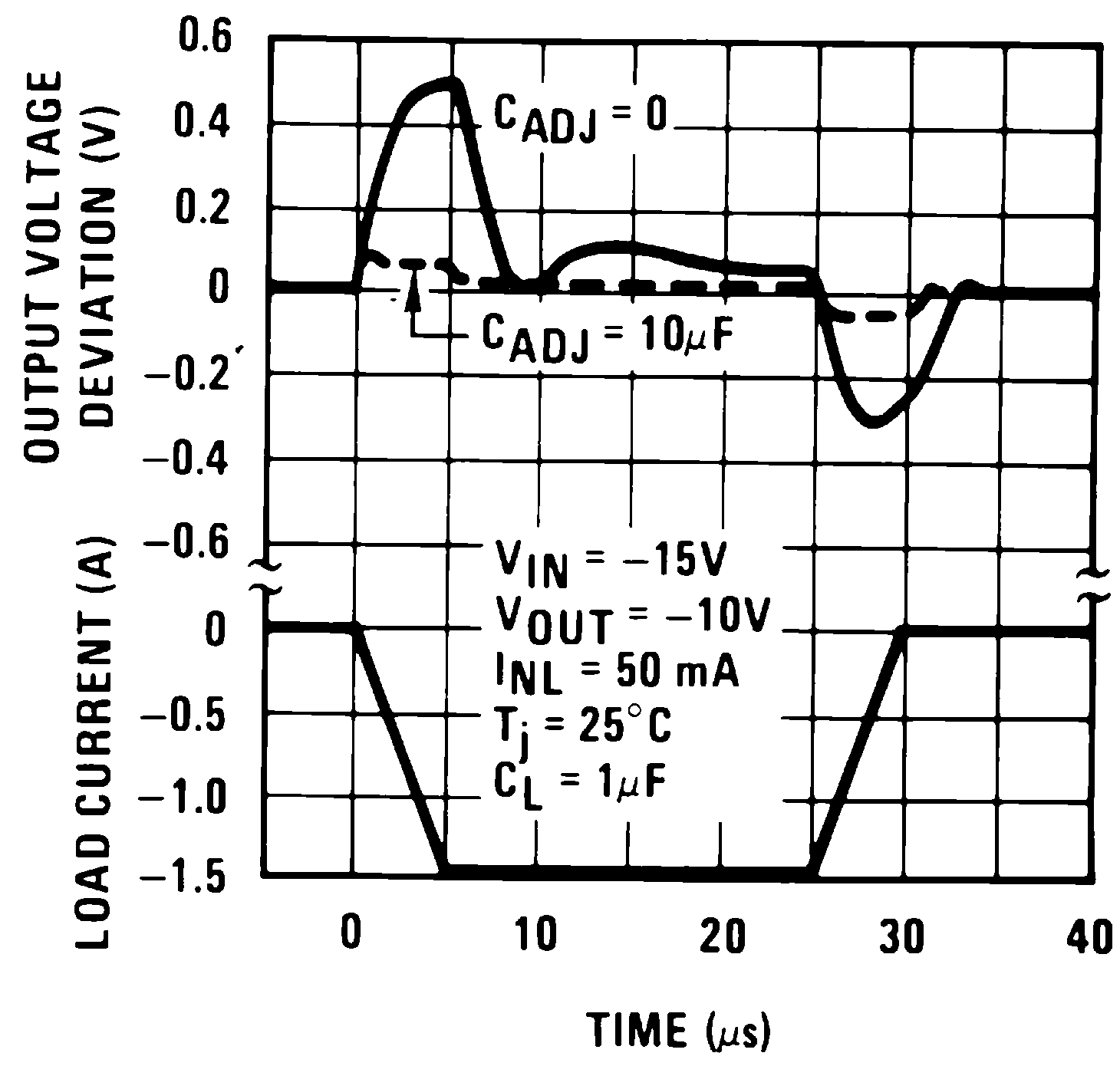

Figure 12. Load Transient Response
