11 Layout

11.1 Layout Guidelines

The 1-Ω resistor should be located on the ground side of the LM3411, and the 100-nF capacitor should be physically located near the package.

11.2 Layout Example

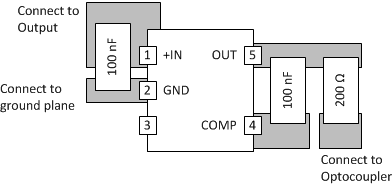

LM3411 Layout_Drawing_snvs113.gif Figure 37. LM3411 Layout Schematic
