8 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

8.1 Application Information

The LM385-1.2-MIL device creates a voltage reference for to be used for a variety of applications including amplifiers, power supplies, and current-sensing circuits. The following application shows how to use these devices to establish a voltage reference.

8.2 Typical Application

LM385-1.2-MIL lmx85app_slvs075.gif Figure 8. Generating Reference Voltage With a Resistive Current Source

8.2.1 Design Requirements

The key design requirement when using this device as a voltage reference is to supply the LM385 with a minimum Cathode Current (IZ), as indicated in Electrical Characteristics.

8.2.2 Detailed Design Procedure

In order to generate a constant and stable reference voltage, a current greater than IZ(MIN) must be sourced into the cathode of this device. This can be accomplished using a current regulating device such as LM334 or a simple resistor. For a resistor, its value should be equal to or greater than (Vsupply - Vreference) ÷ IZ(MIN) .

8.2.3 Application Curve

LM385-1.2-MIL tc8_slvs075.gif Figure 9. Transient Response

8.3 System Examples

8.3.1 Thermocouple Cold-Junction Compensator

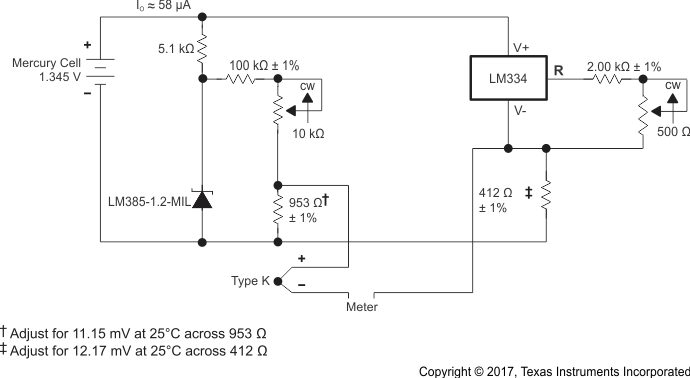

LM385-1.2-MIL app_slvs075.gif Figure 10. Thermocouple Cold-Junction Compensator

8.3.2 Generating Reference Voltage with a Constant Current Source

LM385-1.2-MIL ap2_slvs075.gif Figure 11. Generating Reference Voltage With a Constant Current Source Device
