Typical Characteristics

TA = 25°C, unless otherwise noted. Please refer to Typical Applications for circuit designs.
LM5160-Q1 Eff_10Vo_Updated_SNVSA03.gif
VOUT = 10 V RON = 200 kΩ
L = 47 µH
Figure 1. Efficiency at 500 kHz
LM5160-Q1 CCM_DCM_Eff_SNVSA03.gif
VOUT = 5 V RON = 169 kΩ
L = 47 µH
Figure 3. Efficiency CCM vs DCM at 300 kHz
LM5160-Q1 Vcc_Vin_SNVSA03.gif
Figure 5. VCC vs VIN

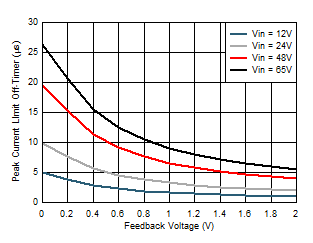

LM5160-Q1 ILim_OffTimer_SNVSA03.gif
Figure 7. TOFF (ILIM) vs VFB
LM5160-Q1 Fsw_Vin_SNVSA03.gif
VOUT = 5 V
Figure 9. Switching Frequency vs VIN
LM5160-Q1 Gate Drive UVLO_Revised_SNVSA03.gif
VIN = 24 V
Figure 11. Gate Drive UVLO vs Temperature

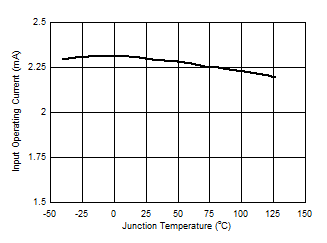

LM5160-Q1 Operating Current_SNVSA03.gif
VIN = 24 V
Figure 13. Input Operating Current vs Temperature
LM5160-Q1 Vcc UVLO Threshold_SNVSA03.gif
VIN = 24 V
Figure 15. VCC UVLO vs Temperature

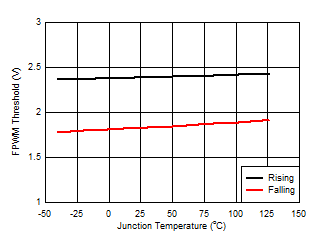

LM5160-Q1 FPWM_Revised_SNVSA03.gif
VIN = 24 V
Figure 17. FPWM Threshold vs Temperature
LM5160-Q1 Eff_250kHz_SNVSA03.gif
VOUT = 5 V RON = 215 kΩ
L = 100 µH
Figure 2. Efficiency at 250 kHz

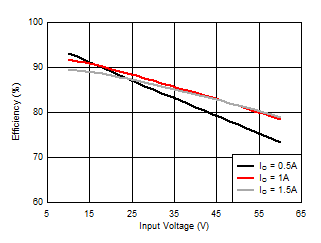

LM5160-Q1 Eff vs Vin Updated_SNVSA03.gif
VOUT = 5 V RON = 169 kΩ
L = 47 µH
Figure 4. Efficiency vs Input Voltage at 300 kHz
LM5160-Q1 Vcc_Icc_SNVSA03.gif
VIN = 24 V
Figure 6. VCC vs ICC
LM5160-Q1 On-Time_Vin_SNVSA03.gif
VOUT = 5 V
Figure 8. TON vs VIN

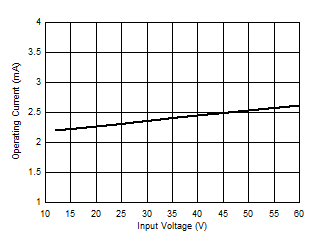

LM5160-Q1 Operating Current vs. Vin _Revised_SNVSA03.gif
VFB = 3 V
Figure 10. IIN vs VIN (Operating, Non-Switching)
LM5160-Q1 Vref_vs_Temp_LM5160_SNVSA03.gif
VIN = 24 V
Figure 12. Reference Voltage vs Temperature

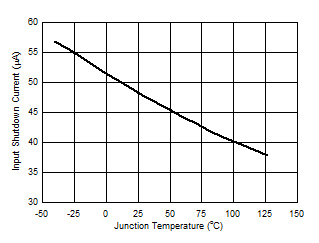

LM5160-Q1 Shutdown_Current_SNVSA03.gif
VIN = 24 V
Figure 14. Input Shutdown Current vs Temperature
LM5160-Q1 Current Limit_SNVSA03.gif
VIN = 24 V
Figure 16. Current Limit vs Temperature
LM5160-Q1 FET_Rdson_SNVSA03.gif
ISW = 200 mA VIN = 24 V
Figure 18. Switch Resistance vs Temperature
