6 Pin Configuration and Functions

RPE Package
9-Pin VQFN-HR
Top View (All variants)

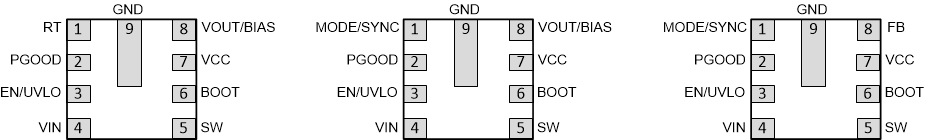

LMR36506-Q1 Auto.gif

Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 RT
or MODE/SYNC 		A When the part is trimmed as the RT pin variant, the switching frequency in the part can be adjusted from 200 kHz to 2.2 MHz based on the resistor value connected between RT and GND.
When the pin is trimmed as the MODE/SYNC variant, the part can operate in user-selectable PFM/FPWM operation. In FPWM, the part can be synchronized to an external clock. Clock triggers on rising edge of applied external clock.
Do not float this pin.
2 PGOOD A Open-drain power-good flag output. Connect to suitable voltage supply through a current limiting resistor. High = power OK, low = power bad. It goes low when EN = low. It can be open or grounded when not used.
3 EN A Enable input to regulator. High = ON, low = OFF. Can be connected directly to VIN. Do not float.
4 VIN P Input supply to regulator. Connect a high-quality bypass capacitor or capacitors directly to this pin and GND.
5 SW P Regulator switch node. Connect to power inductor.
6 BOOT P Bootstrap supply voltage for internal high-side driver. Connect a high-quality 100-nF capacitor from this pin to the SW pin.
7 VCC P Internal LDO output. Used as supply to internal control circuits. Do not connect to external loads. Can be used as logic supply for power-good flag. Connect a high-quality 1-µF capacitor from this pin to GND.
8 VOUT/BIAS or FB A Fixed output options are available with the VOUT/BIAS pin variant. Connect to output voltage node for fixed VOUT. Check the Device Comparison Table for more details.
The FB pin variant can help adjust the output voltage. Connect to tap point of feedback voltage divider. Do not float the pin.
9 GND G Power ground terminal. Connect to system ground. Connect to CIN with short, wide traces.
A = Analog, P = Power, G = Ground
