10.13 Power-Up Characteristics

When configured as shown in the front page schematic, the LMZ31704 produces a regulated output voltage following the application of a valid input voltage. During the power-up, internal soft-start circuitry slows the rate that the output voltage rises, thereby limiting the amount of in-rush current that can be drawn from the input source. Figure 24 shows the start-up waveforms for a LMZ31704, operating from a 5-V input (PVIN=VIN) and with the output voltage adjusted to 1.8 V. Figure 25 shows the start-up waveforms for a LMZ31704 starting up into a pre-biased output voltage.

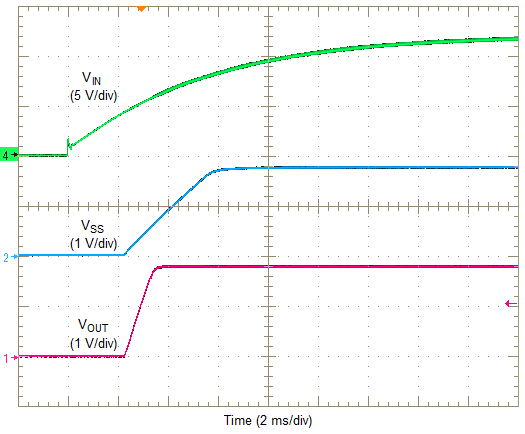

LMZ31704 start_up.pngFigure 24. Start-up Waveforms
LMZ31704 prebias_start_up.pngFigure 25. Start-up into Pre-bias
