5.8 Typical Characteristics: VCC = 5V

at TA = 25°C, VCC = 5V, CF = 1nF, RF = 43kΩ (slope = 43mV/dB) and Ref_Res = 1% 56kΩ, and 10nF capacitor to AGND on Log_Inp and Log_Inm, (unless otherwise noted). For AFE, 2nd-order BPF centered around frequency "f" with gain = -7dB used between LNA and Log Detector block.

LOG300 Log Detector output at Various Frequencies

Figure 5-1 Log Detector output at Various Frequencies
LOG300 AFE output at Various Frequencies

Figure 5-3 AFE output at Various Frequencies
LOG300 Log Detector output at Different Temperature Points
 f = 1MHz
Figure 5-5 Log Detector output at Different Temperature Points
LOG300 Log Detector output at Different Temperature Points
f = 20MHz
Figure 5-7 Log Detector output at Different Temperature Points
LOG300 Log Detector Slope Variation with Input Signal Frequency

Figure 5-9 Log Detector Slope Variation with Input Signal Frequency
LOG300 Log Detector Slope Histogram with Ref_Res
Ref_Res = 56kΩ μ = 43.55mV/dB σ = 0.44mV/dB
Figure 5-11 Log Detector Slope Histogram with Ref_Res
LOG300 Minimum Input Sensitivity of Log_Detector
LCE = ±1dB,
f = 1MHz		 μ = 22.15μVP σ = 1.59μVP
Figure 5-13 Minimum Input Sensitivity of Log_Detector
LOG300 Minimum Output Voltage at Log_Out
50Ω + 10nF at Log_Inp to AGND μ = 0.17V σ = 0.04V
Figure 5-15 Minimum Output Voltage at Log_Out
LOG300 Minimum Log_Out Voltage vs Time
Figure 5-17 Minimum Log_Out Voltage vs Time

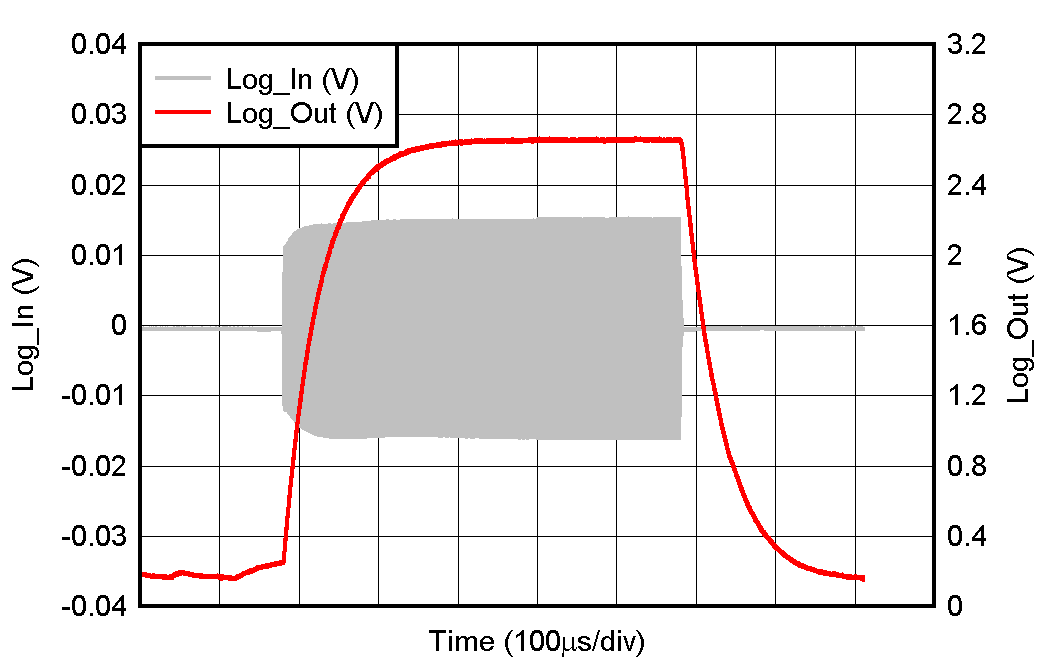

LOG300 Log Detector Rise and Fall Time
f = 1MHz, CF = 1nF
Figure 5-19 Log Detector Rise and Fall Time

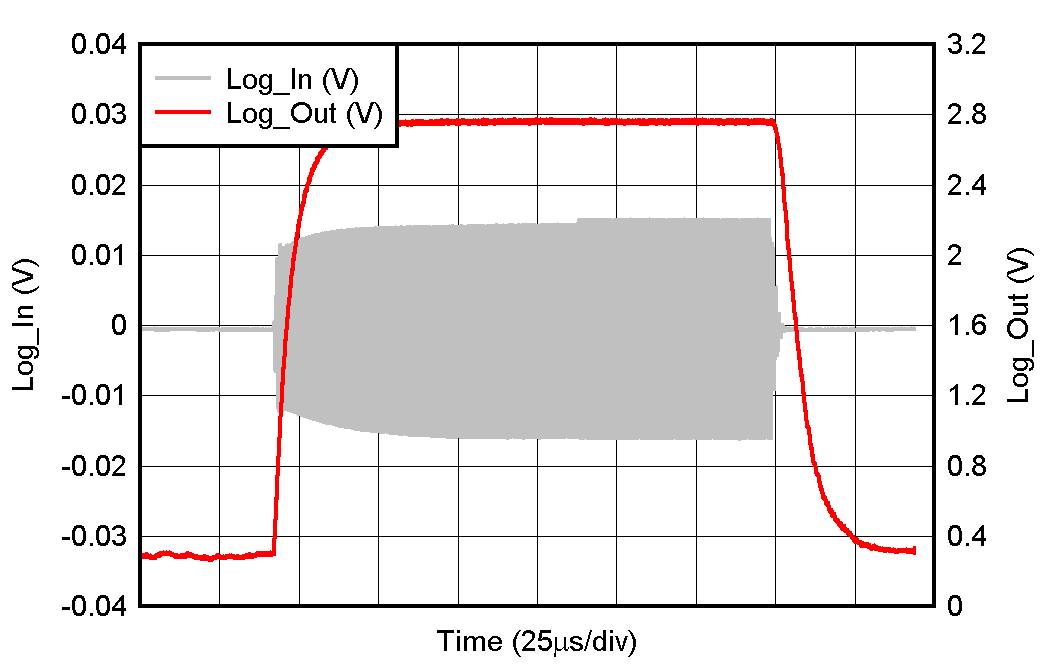

LOG300 Log Detector Rise and Fall Time
f = 1MHz, CF = 100pF
Figure 5-21 Log Detector Rise and Fall Time
LOG300 Small-Signal Step Response: Buffer

Figure 5-23 Small-Signal Step Response: Buffer
LOG300 Large-Signal Step Response: Buffer

Figure 5-25 Large-Signal Step Response: Buffer
LOG300 LNA Overdrive Recovery

Figure 5-27 LNA Overdrive Recovery

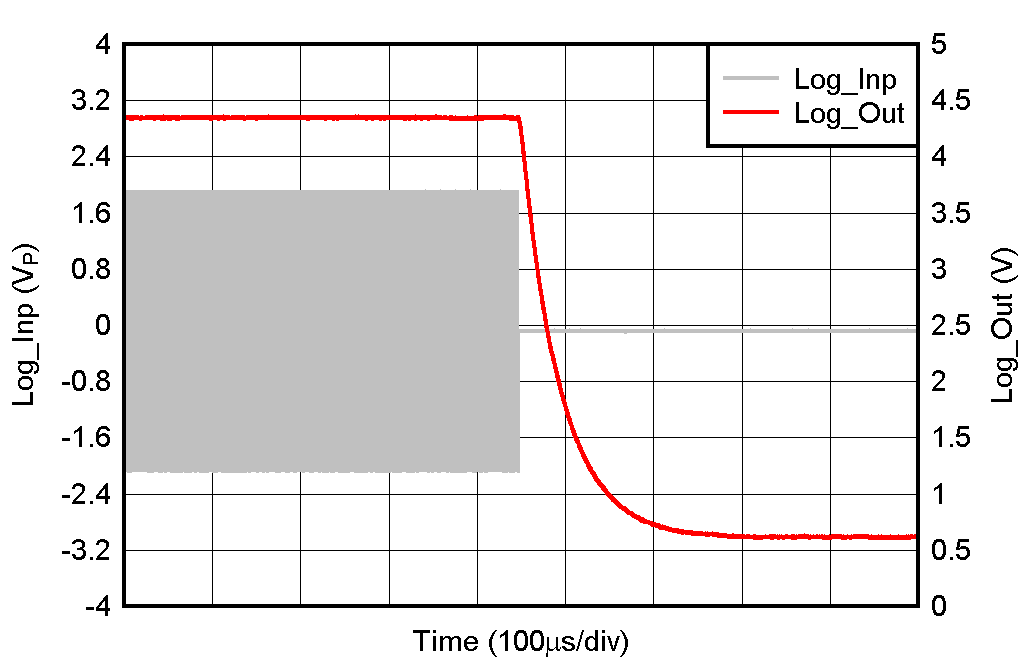

LOG300 Log Detector Input Stage Overdrive
CF = 200pF , Log_Inp = 4VP
Figure 5-29 Log Detector Input Stage Overdrive
LOG300 Frequency Detector Output Waveform

Figure 5-31 Frequency Detector Output Waveform
LOG300 Slope vs Frequency
RF = 42.2kΩ, Offset_Cap = 100nF
Figure 5-33 Slope vs Frequency
LOG300 Log Detector Conformance Error for Different Frequencies

Figure 5-2 Log Detector Conformance Error for Different Frequencies
LOG300 AFE Log Conformance Error for Different Frequencies

Figure 5-4 AFE Log Conformance Error for Different Frequencies
LOG300 Log Detector Conformance Error for Different Temperature Points
 f = 1MHz
Figure 5-6 Log Detector Conformance Error for Different Temperature Points
LOG300 Log Detector Conformance Error for Different Temperature Points
 f = 20MHz
Figure 5-8 Log Detector Conformance Error for Different Temperature Points
LOG300 Log Detector Slope Variation vs Supply
RF = 43kΩ, f = 1MHz
Figure 5-10 Log Detector Slope Variation vs Supply
LOG300 Log Detector Slope Histogram without Ref_Res
Ref_Res = Open μ = 42.03mV/dB σ = 0.53mV/dB
Units tested from the same lot
Figure 5-12 Log Detector Slope Histogram without Ref_Res
LOG300 Minimum Input Sensitivity of Log_Detector
LCE = ±2dB,
f = 20MHz		 μ = 22.14μVP σ = 1.67μVP
Figure 5-14 Minimum Input Sensitivity of Log_Detector
LOG300 Minimum Output Voltage at Log_Out
10nF at Log_Inp to AGND μ = 0.13V σ = 0.018V
Figure 5-16 Minimum Output Voltage at Log_Out
LOG300 Slope Variation vs Temperature
Figure 5-18 Slope Variation vs Temperature

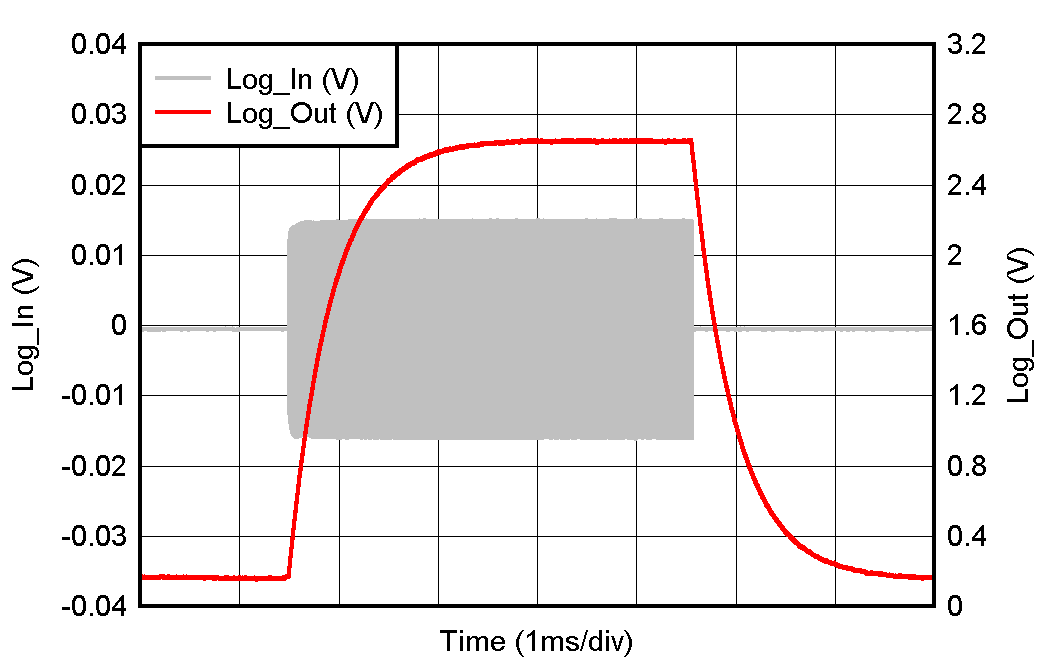

LOG300 Log Detector Rise and Fall Time
f = 1MHz, CF = 10nF
Figure 5-20 Log Detector Rise and Fall Time
LOG300 Log Detector output for Various Input Waveforms
f = 1MHz
Figure 5-22 Log Detector output for Various Input Waveforms
LOG300 Small-Signal Step Response: Inverting Buffer

Figure 5-24 Small-Signal Step Response: Inverting Buffer
LOG300 Large-Signal Step Response: Inverting Buffer

Figure 5-26 Large-Signal Step Response: Inverting Buffer
LOG300 AFE Overdrive Recovery
BPF = 180kHz, CF = 220pF
Figure 5-28 AFE Overdrive Recovery

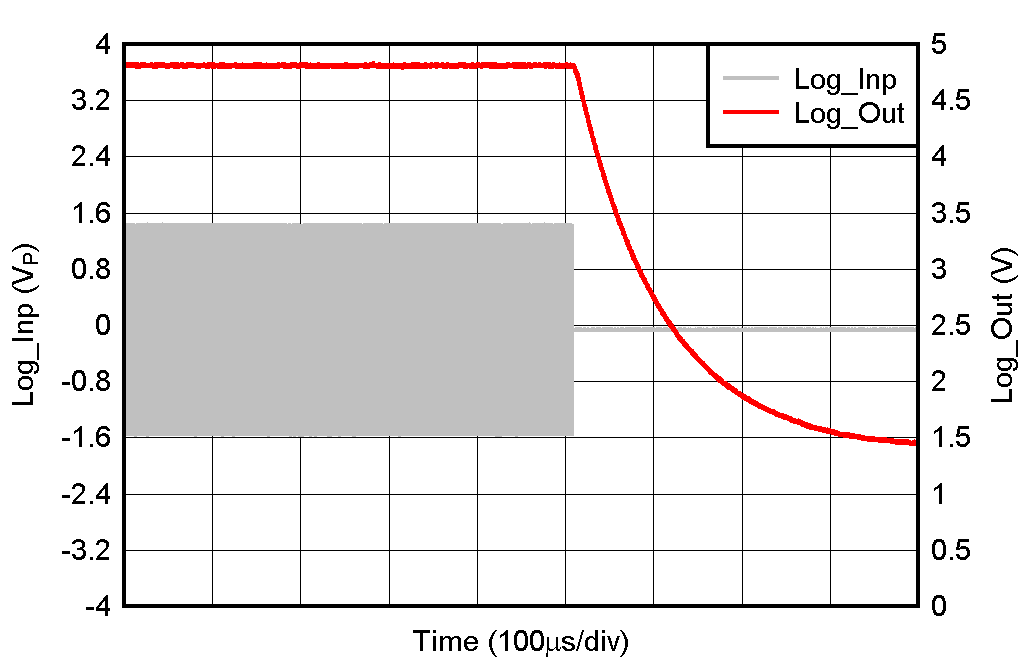

LOG300 Log Detector Output Stage Overdrive
 CF = 200pF, RF = 100kΩ
Figure 5-30 Log Detector Output Stage Overdrive
LOG300 Output vs 100mVpp Ripple Injected on VCC
AFE; BPF = 65kHz, RC filter on VCC of R = 50Ω, C = 12µF
Figure 5-32 Output vs 100mVpp Ripple Injected on VCC
