7.11 Typical Characteristics — LDO

TA = 25°C unless otherwise noted.
LP3907 30017835.gif
VIN = 3.6 V VOUT = 2.6 V 100-mA Load
Figure 1. Output Voltage Change vs Temperature (LDO1)
LP3907 30017837.png
VIN = 3.6 V VOUT = 2.6 V 0 to 150-mA Load
Figure 3. Load Transient (LDO1)
LP3907 30017839.png
VIN = 3.6 to 4.2 V VOUT = 2.6 V 300-mA Load
Figure 5. Line Transient (LDO1)
LP3907 30017841.png
VIN = 0 to 3.6 V VOUT = 2.6 V 1-mA Load
Figure 7. Enable Start-Up Time (LDO1)
LP3907 30017867.gif
VIN = 1.74 V
Figure 9. LDO Maximum Load
LP3907 30017836.gif
VIN = 3.6 V VOUT = 2.6 V 100-mA Load
Figure 2. Output Voltage Change vs Temperature (LDO2)
LP3907 30017838.png
VIN = 3.6 V VOUT = 3.3 V 0 to 150-mA Load
Figure 4. Load Transient (LDO2)
LP3907 30017840.png
VIN = 3.6 to 4.2 V VOUT = 3.3 V 300-mA Load
Figure 6. Line Transient (LDO2)

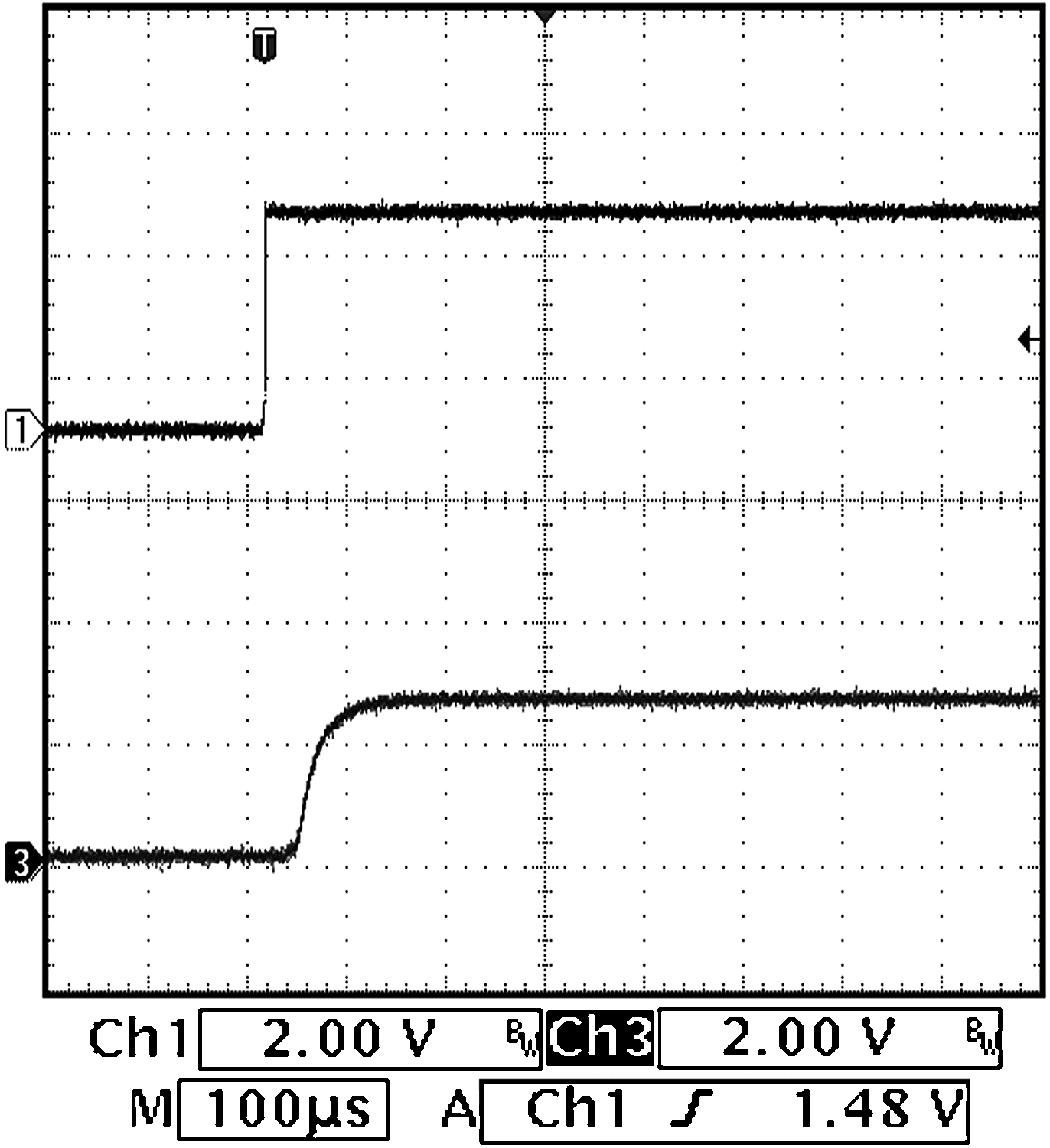

LP3907 30017842.png
VIN = 0 to 3.6 V VOUT = 3.3 V 1-mA Load
Figure 8. Enable Start-Up Time (LDO2)
