8.7 Typical Characteristics

at TA = 25°C, VDD = 15 V, and VSS = –15 V (unless otherwise noted)
MUX36S08 MUX36D04 C001_SBOS705.png
Figure 1. On-Resistance vs Source or Drain Voltage
MUX36S08 MUX36D04 C003_SBOS705.png
Figure 3. On-Resistance vs Source or Drain Voltage

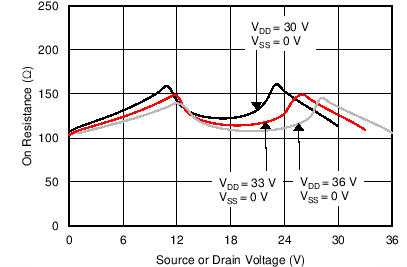

MUX36S08 MUX36D04 C023_SBOS705.png
Figure 5. On-Resistance vs Source or Drain Voltage
MUX36S08 MUX36D04 C029_SBOS705.png
VDD = 24 V, VSS = 0 V
Figure 7. On-Resistance vs Source or Drain Voltage
MUX36S08 MUX36D04 C006_SBOS705.png
VDD = 15 V, VSS = –15 V
Figure 9. Leakage Current vs Temperature
MUX36S08 MUX36D04 C008_SBOS705.png
MUX36S08, source-to-drain
Figure 11. Charge Injection vs Source Voltage
MUX36S08 MUX36D04 C011_SBOS705.png
Drain-to-source
Figure 13. Charge Injection vs Source or Drain Voltage
MUX36S08 MUX36D04 C012_SBOS705.png
Figure 15. Off Isolation vs Frequency
MUX36S08 MUX36D04 C014_SBOS705.png

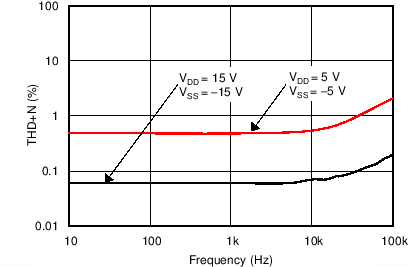

Figure 17. THD+N vs Frequency
MUX36S08 MUX36D04 C015_SBOS705.png
MUX36S08, VDD = 15 V, VSS = –15 V
Figure 19. Capacitance vs Source Voltage
MUX36S08 MUX36D04 C016_SBOS705.png
MUX36S08, VDD = 30 V, VSS = 0 V
Figure 21. Capacitance vs Source Voltage

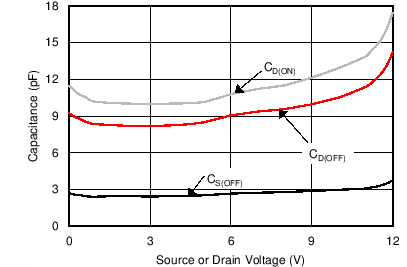

MUX36S08 MUX36D04 C022_SBOS705.png
MUX36S08, VDD = 12 V, VSS = 0 V
Figure 23. Capacitance vs Source Voltage
MUX36S08 MUX36D04 C021_SBOS705.png

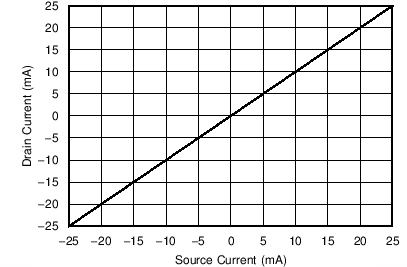

Figure 25. Source Current vs Drain Current
MUX36S08 MUX36D04 C002_SBOS705.png
VDD = 15 V, VSS = –15 V
Figure 2. On-Resistance vs Source or Drain Voltage
MUX36S08 MUX36D04 C004_SBOS705.png
VDD = 12 V, VSS = 0 V
Figure 4. On-Resistance vs Source or Drain Voltage

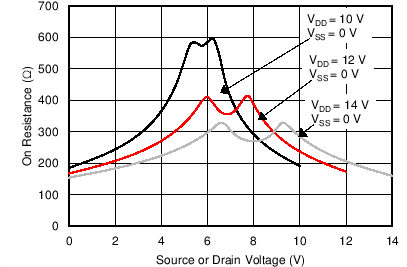

MUX36S08 MUX36D04 C005_SBOS705.png
Figure 6. On-Resistance vs Source or Drain Voltage

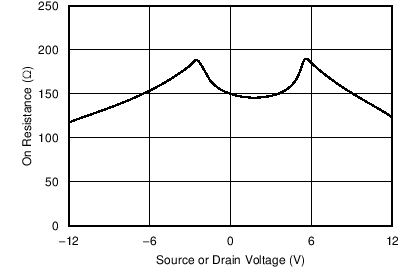

MUX36S08 MUX36D04 C024_SBOS705.png
VDD = 12 V, VSS = –12 V
Figure 8. On-Resistance vs Source or Drain Voltage
MUX36S08 MUX36D04 C007_SBOS705.png
VDD = 12 V, VSS = 0 V
Figure 10. Leakage Current vs Temperature

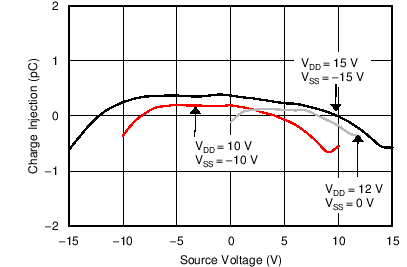

MUX36S08 MUX36D04 C025_SBOS705.png
MUX36D04, source-to-drain
Figure 12. Charge Injection vs Source Voltage
MUX36S08 MUX36D04 C010_SBOS705.png
Figure 14. Turn-On and Turn-Off Times vs Temperature
MUX36S08 MUX36D04 C013_SBOS705.png
Figure 16. Crosstalk vs Frequency
MUX36S08 MUX36D04 C018_SBOS705.png
Figure 18. On Response vs Frequency
MUX36S08 MUX36D04 C026_SBOS705.png
MUX36D04, VDD = 15 V, VSS = –15 V
Figure 20. Capacitance vs Source Voltage
MUX36S08 MUX36D04 C028_SBOS705.png
MUX36D04, VDD = 30 V, VSS = 0 V
Figure 22. Capacitance vs Source Voltage
MUX36S08 MUX36D04 C027_SBOS705.png
MUX36D04, VDD = 12 V, VSS = 0 V
Figure 24. Capacitance vs Source Voltage
