6.6 Typical Characteristics

Typical operating condition is at VCC = 3.3 V, TA = 25°C and VOD = 500 mVpp (unless otherwise noted).
ONET2804T D001_SLLSEK1.gif
Figure 1. Transimpedance vs Input Current
ONET2804T D004_SLLSEK1.gif
Figure 3. Gain vs Frequency
(Test Fixture loss De-embedded)
ONET2804T D005_SLLSEK1.gif

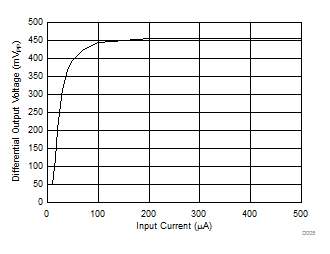

Figure 5. Output Voltage vs Input Current
ONET2804T D007_SLLSEK1.gif
Figure 7. Input Referred Noise vs Temperature
ONET2804T D009_SLLSEK1.gif
Figure 9. RSSI Output Current vs Average Input Current
ONET2804T D002_SLLSEK1.gif
Figure 2. Small Signal Transimpedance vs Ambient Temperature
ONET2804T D003_SLLSEK1.gif
Figure 4. Small Signal Bandwidth vs Ambient Temperature
(Test Fixture loss De-embedded)
ONET2804T D006_SLLSEK1.gif
Figure 6. Deterministic Jitter vs Input Current
ONET2804T D008_SLLSEK1.gif
Figure 8. Power vs Input Current
ONET2804T eye_pattern1_sllsek1.png
27.95 GBPS

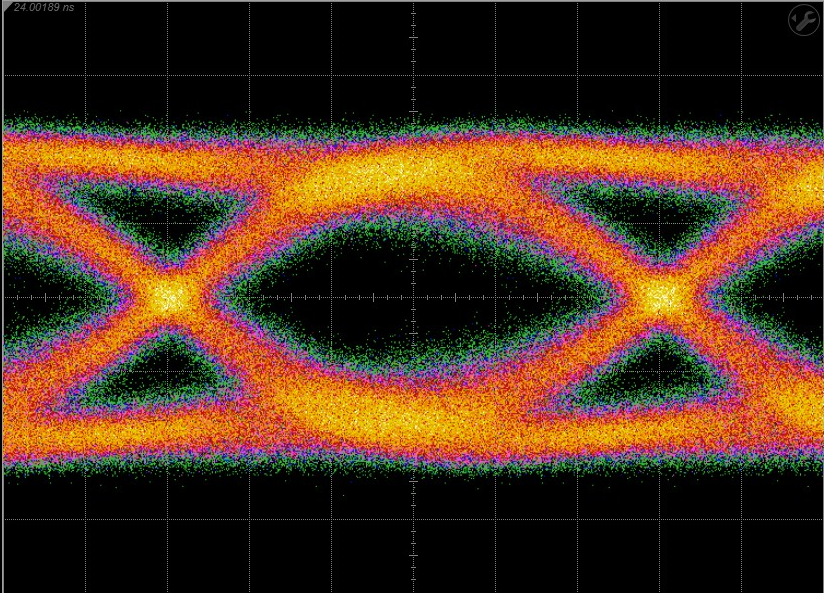

Figure 10. Output Eye-Diagram, 30 µAP-P Input Current
ONET2804T eye_pattern3_sllsek1.png
27.95 GBPS

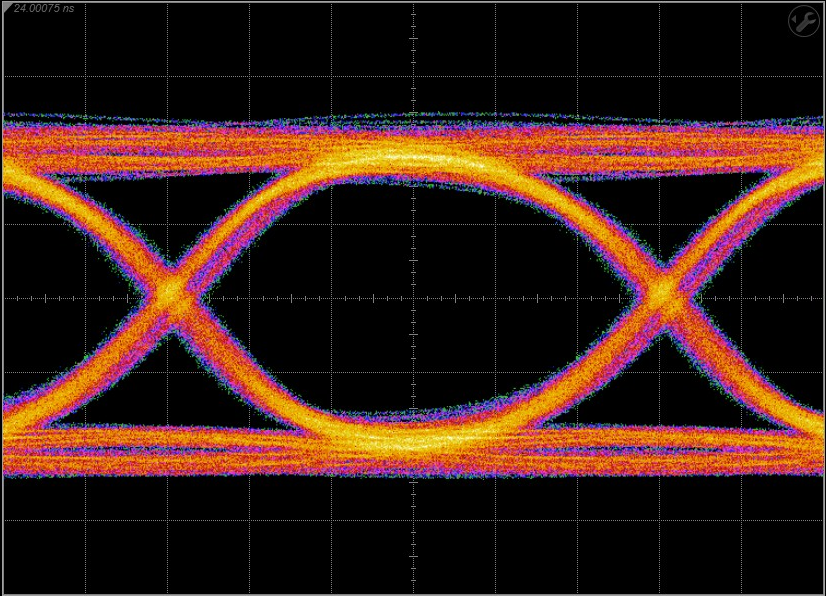

Figure 12. Output Eye-Diagram, 1.5 mAP-P Input Current
ONET2804T eye_pattern2_sllsek1.png
27.95 GBPS

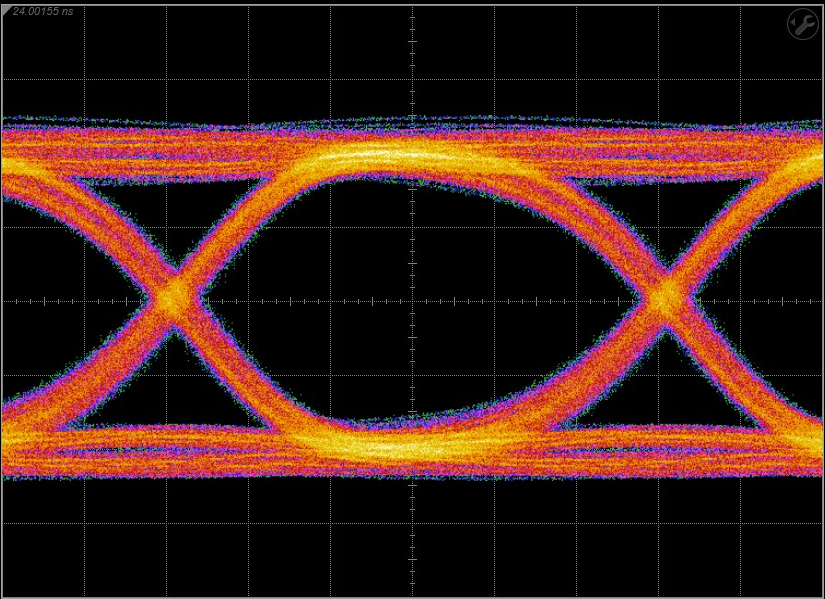

Figure 11. Output Eye-Diagram, 500 µAP-P Input Current
ONET2804T eye_pattern4_sllsek1.png
27.95 GBPS
Figure 13. Output Eye-Diagram, 2.5 mAP-P Input Current
