8.6.1.2.8 FMT[2:0]: Audio Interface Data Format

Default value: 101

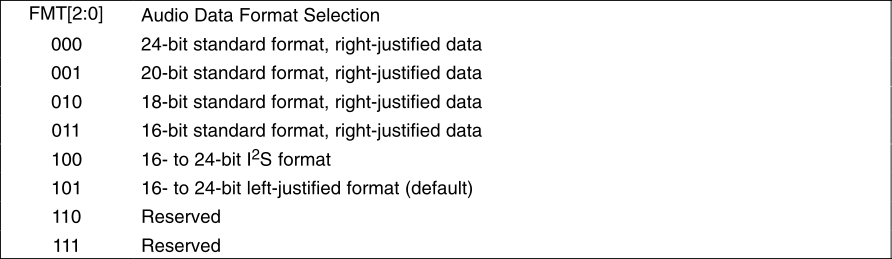

The FMT[2:0] bits are used to select the data format for the serial audio interface. The table in Figure 29 shows the available format options.

PCM1753 PCM1754 PCM1755 sftwarectrl_14.gifFigure 29. FMT[2:0]: Audio Interface Data Format Table
