7.4.4 Automatic Gain Limiter (AGL)

The AGL scheme has three AGL blocks. One ganged AGL exists for the high-band left/right channels, the mid-band left/right channels, and the low-band left/right channels.

The AGL input/output diagram is shown in Figure 47.

TAS5751M M0091-04_LOS670.gif
Professional-quality dynamic range compression automatically adjusts volume to flatten volume level.
 • Each AGL has adjustable threshold levels.
 • Programmable attack and decay time constants
 • Transparent compression: compressors can attack fast enough to avoid apparent clipping before engaging,
    and decay times can be set slow enough to avoid pumping.
Figure 47. Automatic Gain Limiter

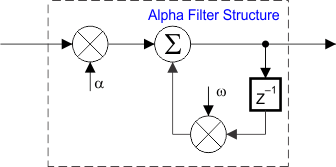

TAS5751M agl_structure_slase77.gif
T = 9.23 format, all other AGL coefficients are 3.23 format
Figure 48. AGL Structure

Table 1. AGL Structure

α, ω T αa, ωa / αd, ωd
AGL 1 0x3B 0x40 0x3C
AGL 2 0x3E 0x43 0x3F
AGL 3 0x47 0x41 0x42
AGL 4 0x48 0x44 0x45
