7.5.4 Packet Protocol

A master device must control packet protocol, which consists of start condition, slave address, read/write bit, data if write or acknowledge if read, and stop condition. The TAS5766M supports only slave receivers and slave transmitters.

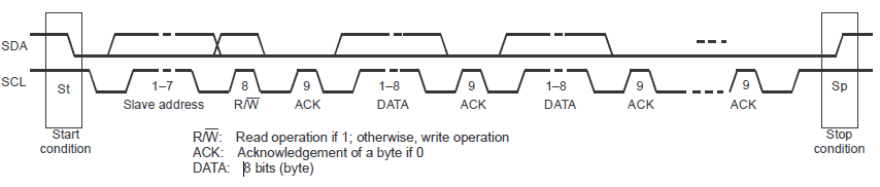

TAS5766M TAS5768M pac_pro_SLAS965.gifFigure 50. Packet Protocol

Table 18. Read / Write Operation – Basic I2C Framework

Transmitter Write M M M S M S M S S M
Data Type St Slave address W/ ACK DATA ACK DATA ACK ACK Sp
Transmitter Read M M M S S M S M M S
Data Type St Slave address R/ ACK DATA ACK DATA ACK NACK Sp
M = Master Device; S = Slave Device; St = Start Condition; Sp = Stop Condition
