8.5.2.1 Writes

To write on the I2C bus, the master will send a START condition on the bus with the address of the slave, as well as the last bit (the R/W bit) set to 0, which signifies a write. After the slave sends the acknowledge bit, the master will then send the register address of the register to which it wishes to write. The slave will acknowledge again, letting the master know it is ready. After this, the master will start sending the register data to the slave until the master has sent all the data necessary (which is sometimes only a single byte), and the master will terminate the transmission with a STOP condition.

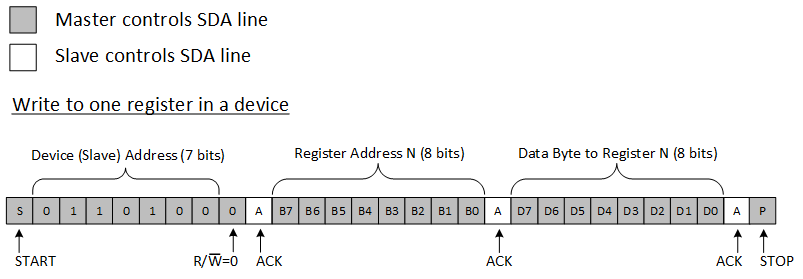

Figure 23 shows an example of writing a single byte to a register.

TCA8418 i2c_write.gifFigure 23. Write to Register
TCA8418 i2c_example.gifFigure 24. Write to Configuration Register
