6.8.1 Memory Map Diagram

Figure 6-9 shows the device memory map.

TMS570LS0432 TMS570LS0332 mem_map_f4_f5_spns186.gifFigure 6-9 TMS570LS0432 Memory Map

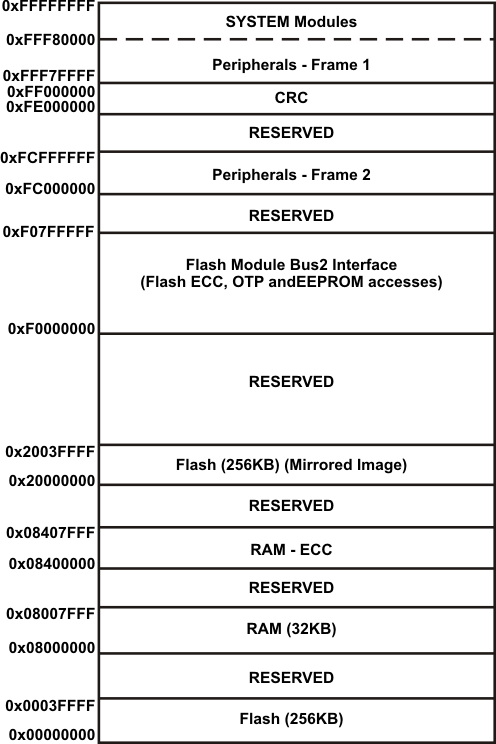

TMS570LS0432 TMS570LS0332 memory_map_f4_LS0322_spns186.gifFigure 6-10 TMS570LS0332 Memory Map

The Flash memory in all configurations is mirrored to support ECC logic testing. The base address of the mirrored Flash image is 0x2000 0000.
