7.4.2.2 PWM and VFO Operation; CTL, SRT, and SRD Pin Relationships to Output Load Current

As the TPS23751 and TPS23752 transition from PWM to VFO mode with decreasing output load current, several things happen to help reduce the light load losses of the DC-DC converter. A summary is shown in Table 3.

Table 3. Comparison of PWM and VFO Modes

MODE SWITCHING FREQUENCY INDUCTOR Peak CURRENT SYNCHRONOUS RECTIFIER
(control with SRD pin)		 INTERNAL SLOPE
COMPENSATION
PWM Constant; set by RT Variable, set by VCTL Enabled (SRD = LOW) Enabled
VFO Variable; set by VCTL Constant, clamped by VSRT Disabled (SRD = OPEN) Disabled

The state of the SRD pin depends on the internal operating mode (PWM or VFO) and is used to enable or disable the synchronous rectifier. In addition to disabling the synchronous rectifier, the TPS23751 and TPS23752 reduce the switching frequency in VFO mode to maintain output regulation.

Synchronous rectification provides an efficiency advantage over a standard diode rectifier at medium to heavy loads, but not at lighter loads. The SRD feature can provide a means to recover the light load losses by disabling the synchronous rectifier and allowing the standard diode rectifier to take over as illustrated in Figure 28 by the VFO/PWM mode efficiency curve.

TPS23751 TPS23752 Light_Load_Eff_vs_Mode_SLVSB97.gifFigure 28. TPS23751 and TPS23752 Light Load Efficiency versus Mode

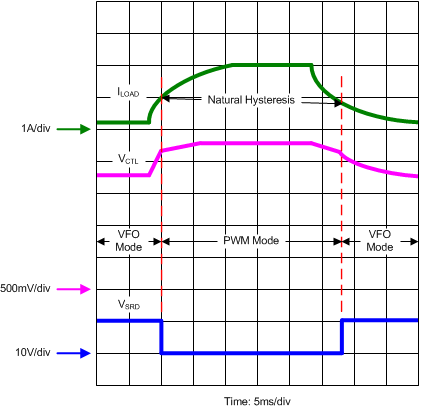

Figure 29 illustrates operation through the VFO to PWM to VFO transitions. As load current increases, so does VCTL. When VCTL exceeds the rising threshold, the TPS23751 and TPS23752 transition from VFO to PWM mode, and SRD goes low. The converter now operates with fixed frequency and current demand set by VCTL. As load current decreases, so does VCTL. When VCTL decays below the falling threshold, the TPS23751 and TPS23752 transition from PWM to VFO mode, and SRD goes high. The converter now operates with variable frequency set by VCTL, and fixed current demand set by VSRT.

TPS23751 TPS23752 Conv_Mode_Trans_SLVSB97.gifFigure 29. Converter Mode Transition

There is a natural load current hysteresis for ILOAD which can be seen in Figure 29 between the transition points. For increasing ILOAD, the transition current is slightly higher than for decreasing ILOAD. This condition is due partially to CTL pin hysteresis (approximately 35mV) and partially due to CTL pin operating point versus mode. VCTL is slightly higher in PWM mode than in VFO mode for given output load at or near the transition point.
