11.3.3 Simple 24-V Power Supply Path Protection

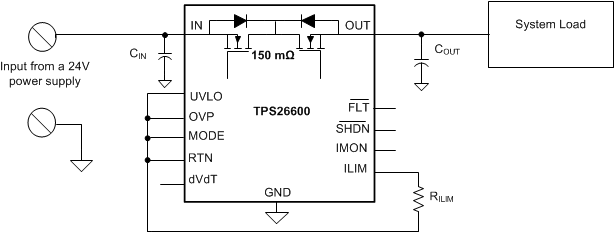

With the TPS2660x, a simple 24-V power supply path protection can be realized using a minimum of three external components as shown in the schematic diagram in Figure 69. The external components required are: a R(ILIM) resistor to program the current limit, C(IN) and C(OUT) capacitors.

TPS2660 System_Example_2_SLVSDG2.gifFigure 69. TPS26600 Configured for a Simple 24-V Supply Path Protection

Protection features with this configuration include:

  • Load and device protection from reverse input polarity fault down to –60V
  • 15 V (typical) rising under voltage lock-out threshold
  • 33 V (typical) rising overvoltage cut-off threshold
  • Protection from 60 V from the external SELV supply
  • Inrush current control with 24V/1.6 ms output voltage slew rate
  • Reverse Current Blocking
  • Accurate current limiting with Auto-Retry
