9.1.2.3 Application Curves

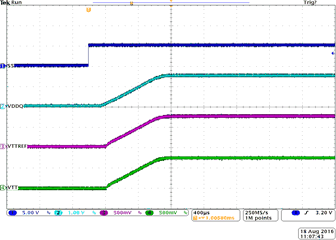

TPS51916 S5turnonDcap2SM.gif
DCAP2 Mode VIN = 12 V S3 = ON
VVDDQ = 1.5 V IOUT = 10 A
Figure 44. S5 Turn-ON

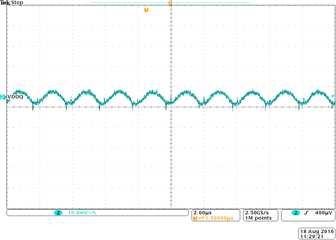

TPS51916 VoutRippleDcap2SM.gif
DCAP2 Mode VIN = 12 V
VVDDQ = 1.5 V IOUT = 20 A
Figure 46. Output Voltage Ripple

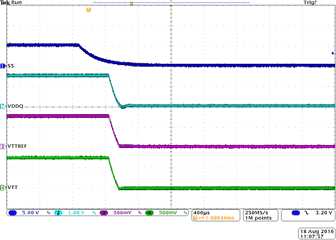

TPS51916 S5turnoffDcap2SM.gif
DCAP2 Mode VIN = 12 V S3 = ON
VVDDQ = 1.5 V IOUT = 10 A
Figure 45. Soft-Start Turn-OFF
