7.6 Typical Characteristics

VIN = VDD = 12 V, TA = 25°C, RRT = 40.2 kΩ, TA= 25°C (unless otherwise specified)
TPS543C20A D001_SLUSDE0.gif
VIN = 5 V 500 kHz 25°C
Figure 2. Efficiency vs Output Current
TPS543C20A D002_SLUSDE0.gif
VIN = 12 V 500 kHz 25°C
Figure 4. Efficiency vs Output Current
TPS543C20A D003_SLUSDE0.gif
VOUT = 1 V 1 MHz 25°C
Figure 6. Efficiency vs Output Current

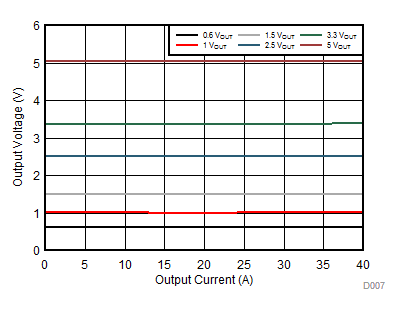

TPS543C20A D007_SLUSCD4.gif
VIN = 12 V 500 kHz 25°C
Figure 8. Output Voltage vs Output Current

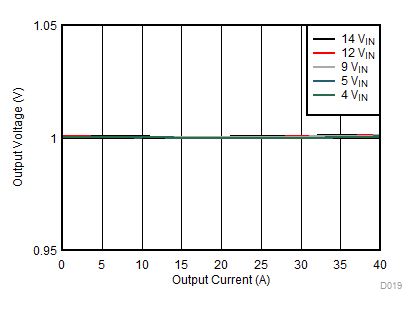

TPS543C20A D019_SLUSCD4.gif
VOUT = 1 V 1 MHz 25°C
Figure 10. Output Voltage vs Output Current
TPS543C20A tc003_sluscd4.gifFigure 12. Output Voltage Start-Up and Shutdown
TPS543C20A tc006_sluscd4.gif
15 A to 25 A to 15 A, 10-A Step at 40 A/µs
Figure 14. Output Voltage Transient Response

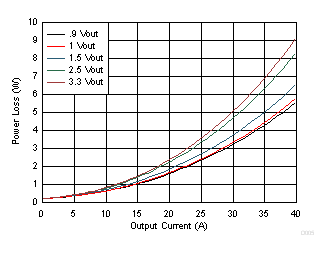

TPS543C20A D005_SLUSDE0.gif
VIN = 5 V 500 kHz 25°C
Figure 3. Power Loss vs Output Current
TPS543C20A D006_SLUSDE0.gif
VIN = 12 V 500 kHz 25°C
Figure 5. Power Loss vs Output Current
TPS543C20A D007_SLUSDE0.gif
VOUT = 1 V 1 MHz 25°C
Figure 7. Power Loss vs Output Current
TPS543C20A D010_SLUSCD4.gif
VIN = 12 V 500 kHz 25°C
Figure 9. Switching Frequency vs Output Current
TPS543C20A tc001_sluscd4.gifFigure 11. Start-Up From EN
TPS543C20A tc005_sluscd4.gifFigure 13. Output Voltage Ripple at Steady State
