8.4.18 Loss of Synchronization

During sync clock condition, each individual converter will continuously compare current falling edge and previous falling edge, if current falling edge exceeded a 1us delay versus previous pulse, converter will declare a lost sync fault, and response by pulling down ISHARE to shut down all phases.

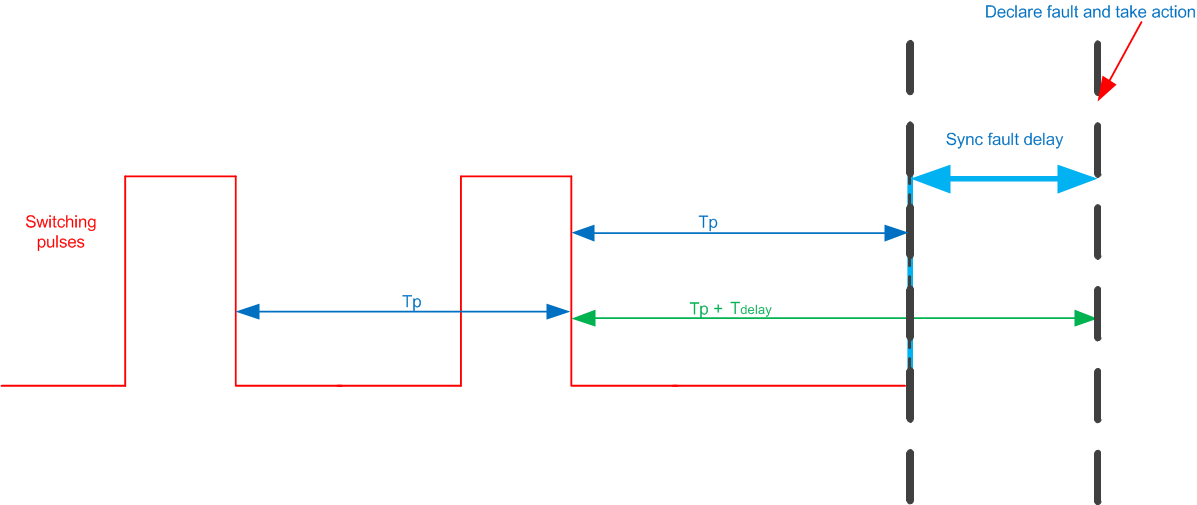

TPS543C20A Loss_of_Sync_SLUSCD4.gifFigure 25. Switching Response When Sync Clock Lost
