8.4.1 Small Signal Model for Loop Response

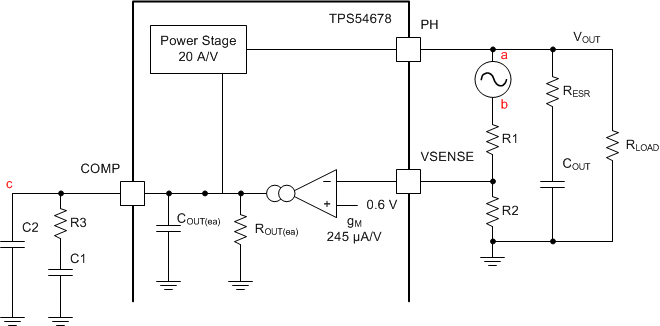

The Figure 26 shows an equivalent model for the TPS54678 control loop that can be modeled in a circuit simulation program to check frequency response and dynamic load response. The error amplifier is a transconductance amplifier with a gm of 245 µA/V. The error amplifier can be modeled using an ideal voltage controlled current source. The resistor RO and capacitor CO model the open loop gain and frequency response of the amplifier.

TPS54678 ai_small_sig_loop_sds.gifFigure 26. Small Signal Model for Loop Response
