8.2.3 Application Curves

TPS56637 5VoutAppEfficiency2P1.gif
Figure 18. Efficiency
TPS56637 LineRegulation2P1.gif

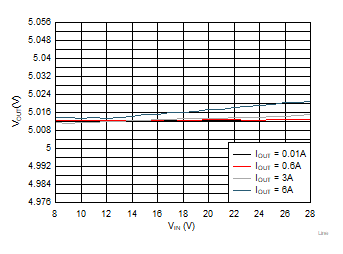

Figure 20. Line Regulation
TPS56637 0A01Ripple-slvseg1.gif
Figure 22. Steady State Waveforms, IOUT = 0.01 A
TPS56637 3ARipple-slvseg1.gif
Figure 24. Steady State Waveforms, IOUT= 3 A
TPS56637 0A-3ALoadTrans-slvseg1.gif

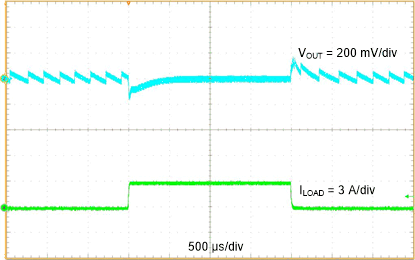

Figure 26. Transient Response 0 to 3 A
TPS56637 0A6-5A4LoadTrans-slvseg1.gif
Figure 28. Transient Response 0.6 to 5.4 A
TPS56637 VINStartup-slvseg1.gif
Figure 30. Startup Relative to VIN
TPS56637 ENStartup-slvseg1.gif
1.
Figure 32. Enable Relative to EN
TPS56637 Loadregulation2P1.gif
Figure 19. Load Regulation
TPS56637 Bode-plot2p0-slvseg1.gif
VIN = 24V VOUT = 5V IOUT = 6A

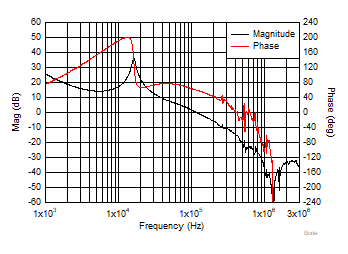

Figure 21. Bode Plot
TPS56637 0A6Ripple-slvseg1.gif
Figure 23. Steady State Waveforms, IOUT= 0.6 A
TPS56637 6ARipple-slvseg1.gif
Figure 25. Steady State Waveforms, IOUT= 6 A
TPS56637 0A-6ALoadTrans-slvseg1.gif
Figure 27. Transient Response 0 to 6 A
TPS56637 3A-6ALoadTrans-slvseg1.gif
Figure 29. Transient Response 3 to 6 A
TPS56637 VINShutdown-slvseg1.gif
Figure 31. Shutdown Relative to VIN
TPS56637 ENShutdown-slvseg1.gif
1.
Figure 33. Disable Relative to EN
