7.6 Typical Characteristics

VIN = 3.6 V, VOUT = 5.0 V, TJ = -40°C to 125 °C, unless otherwise noted.
TPS61230A D009_SLVSCZ5.gif
TA = 25 ºC
Figure 1. Efficiency vs. Output Current
TPS61230A D015_SLVSCZ5.gif
TA = 25 ºC

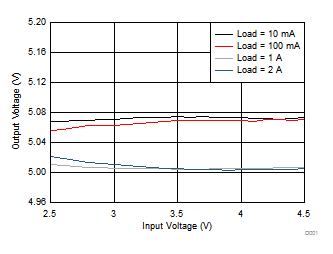

Figure 3. Line Regulation
TPS61230A D013_SLVSCZ5.gif
TA = 25 ºC

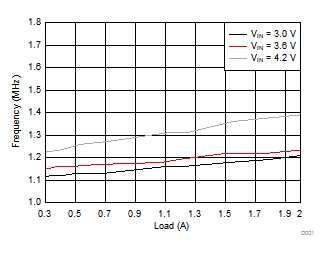

Figure 5. Frequency vs. Load
TPS61230A D002_SLVSCZ5.gif
VOUT = 5 V VIN = 3.6V

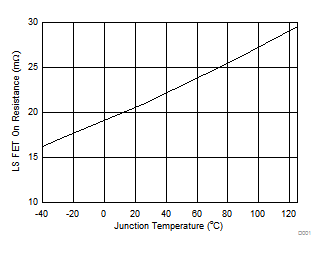

Figure 7. Low-Side FET Rdson vs Junction Temperature
TPS61230A D017_SLVSCZ5.gif

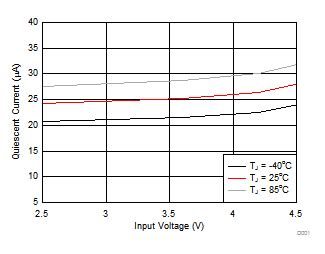

Figure 9. Quiescent Current vs Input Voltage
TPS61230A D007_SLVSCZ5.gif

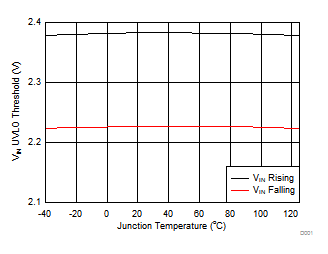

Figure 11. Vin UVLO Threshold vs Junction Temperature
TPS61230A D010_SLVSCZ5.gif
TA = 25 ºC

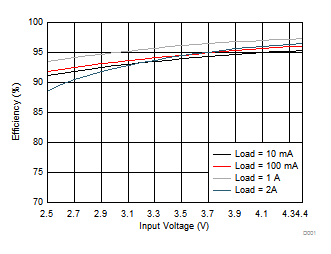

Figure 2. Efficiency vs. Input Voltage
TPS61230A D012_SLVSCZ5.gif
TA = 25 ºC

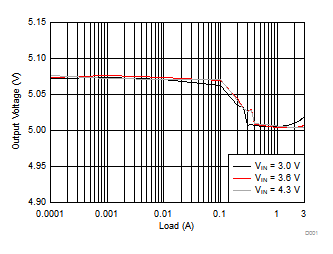

Figure 4. Load Regulation
TPS61230A D001_SLVSCZ5.gif
VOUT = 5 V VIN = 3.6V
Figure 6. High-Side FET Rdson vs Junction Temperature
TPS61230A D003_SLVSCZ5.gif

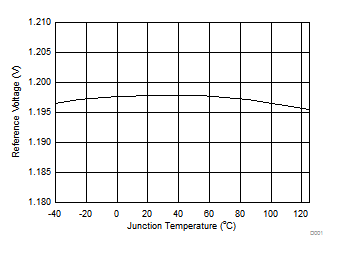

Figure 8. Voltage Reference vs Junction Temperature
TPS61230A D016_SLVSCZ5.gif

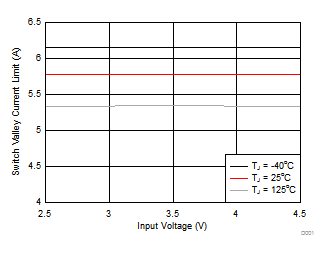

Figure 10. Switch Valley Current Limit vs Input Voltage
TPS61230A D008_SLVSCZ5.gif

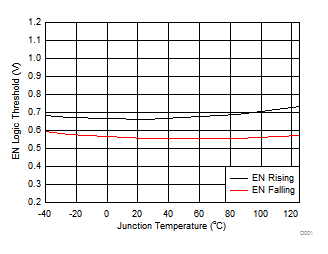

Figure 12. EN logic Threshold vs Junction Temperature
