6.3.2 Layout Example

See Figure 6-12 and Figure 6-13 for the actual placement and routing on the EVM.

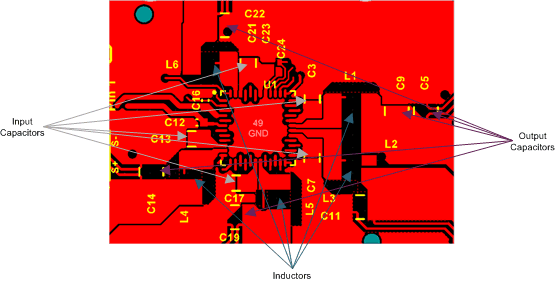

TPS65917-Q1 layer_top_slvsco4.gifFigure 6-12 Top Layer Overview of Inductor and Capacitor Placement and Routing of SMPSs
TPS65917-Q1 layer_bottom_slvsco4.gifFigure 6-13 Bottom Layer Overview of Capacitor Placement and Routing of LDOs
