9.1.8 Special Consideration for Line Transients

During a line transient, the response of this LDO to a very large or fast input voltage change can cause a brief shutdown lasting up to a few hundred microseconds from the voltage transition. This shutdown can be avoided by reducing the voltage step size, increasing the transition time, or a combination of both. Figure 9-3 provides a boundary to follow to avoid this behavior. If necessary, reduce slew rate and the voltage step size to stay below the curve.

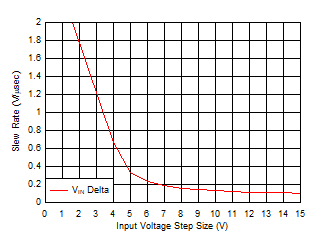

GUID-8E6B33C1-8B0C-4BBF-85BB-14B2E093908F-low.gifFigure 9-3 Recommended Input Voltage Step and Slew Rate in a Line transient
