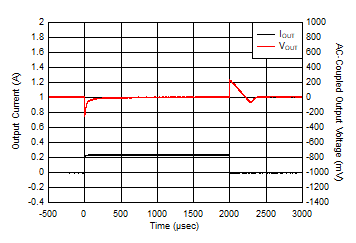

9.2.3 Application Curve

IOUT = 1 mA to 0.22 A, slew rate = 0.5 A/μs, VOUT = 5 V, VIN = 8.4 V, CIN = 1 μF, COUT = 1 μF, CFF = 0 μF
Figure 9-5 TPS7A25 Load Transient (1 mA to 220 mA)
