10 Typical Characteristics (PVIN = VIN = 5 V)

TPS84A20 5VEff_SLVSBC6.pngFigure 7. Efficiency versus Output Current
TPS84A20 5VPdis_SLVSBC6.pngFigure 9. Power Dissipation versus Output Current
TPS84A20 5Vin_0LFM_SOA.pngFigure 11. Safe Operating Area
The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 7, Figure 8, and Figure 9.
The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100-mm × 100-mm double-sided PCB with 2-oz. copper. Applies to Figure 11.

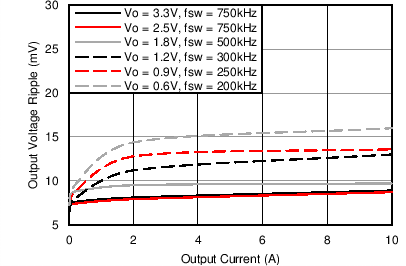

TPS84A20 5VRppl_SLVSBC6.pngFigure 8. Voltage Ripple versus Output Current
TPS84A20 5Vin_Bode.pngFigure 10. VOUT = 1.8 V, IOUT = 10 A, COUT1 = 200 µF Ceramic, fSW = 500 kHz
