8.4.8 GPO Dependencies

GPIOs can be configured as outputs that are based on Boolean combinations of up to two ANDs, all ORed together (Figure 15). Inputs to the logic blocks can include the first 8 defined GPOs, GPIs and rail-status flags. One rail status type is selectable as an input for each AND gate in a Boolean block. For a selected rail status, the status flags of all active rails can be included as inputs to the AND gate. _LATCH rail-status types stay asserted until cleared by a MFR PMBus command or by a specially configured GPI pin. The different rail-status types are shown in Table 5. See the UCD90xxx Sequencer and System Health Controller PMBus Command Reference for complete definitions of rail-status types. The GPO response can be configured to have a delayed assertion or deassertion. The first 8 GPOs can be chosen as Rail Sequence on/off Dependency. The logic state of the GPO instead of actual pin output is used as dependency condition.

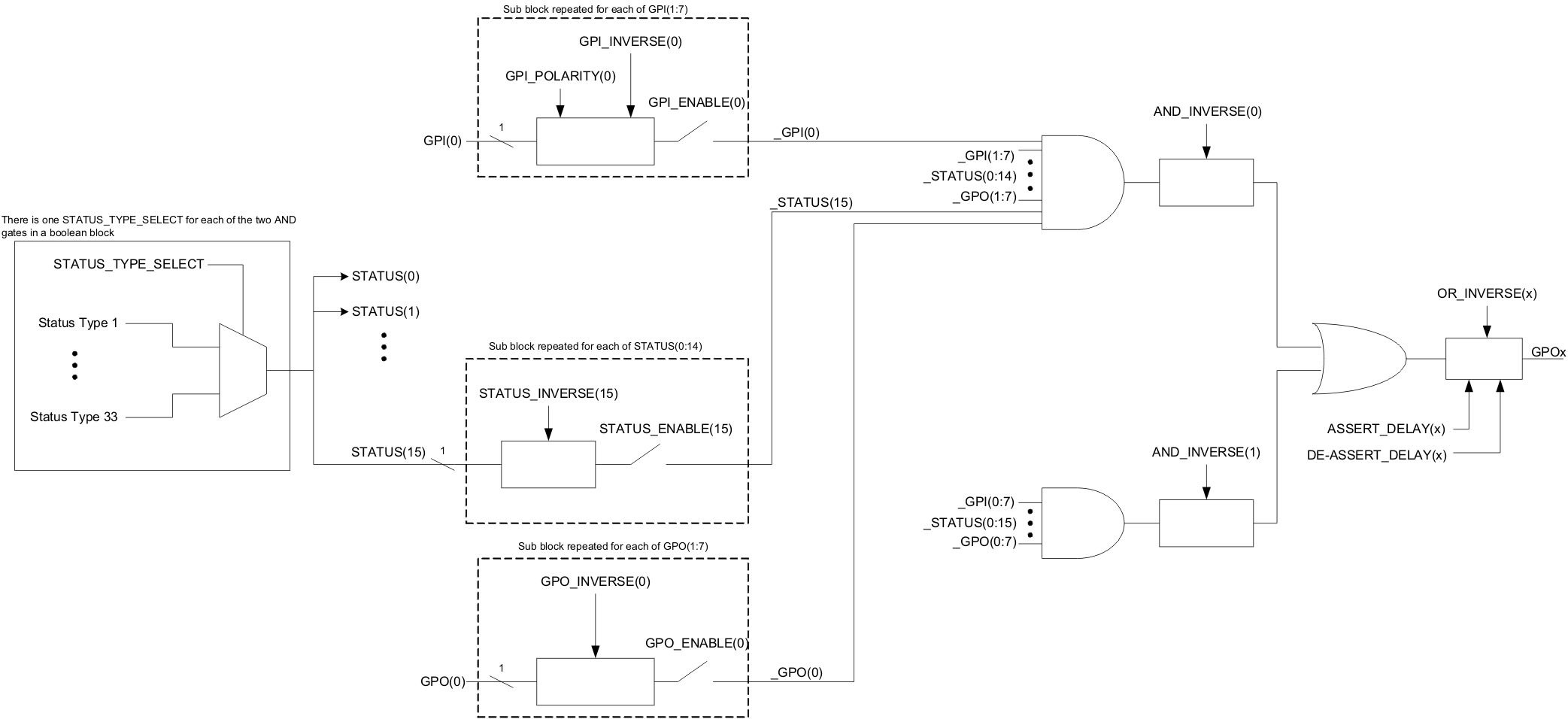

UCD90160A BooleanLogicComb_lvsac8.gifFigure 15. Boolean Logic Combinations
UCD90160A FusionGpoConfig_lvsac8.pngFigure 16. Fusion Boolean Logic Builder

Table 5. Rail-Status Types for Boolean Logic

Rail-Status Types
POWER_GOOD TON_MAX_FAULT VOUT_UV_WARN_LATCH
MARGIN_EN TOFF_MAX_WARN VOUT_UV_FAULT_LATCH
MRG_LOW_nHIGH SEQ_ON_TIMEOUT TON_MAX_FAULT_LATCH
VOUT_OV_FAULT SEQ_OFF_TIMEOUT TOFF_MAX_WARN_LATCH
VOUT_OV_WARN SYSTEM_WATCHDOG_TIMEOUT SEQ_ON_TIMEOUT_LATCH
VOUT_UV_WARN VOUT_OV_FAULT_LATCH SEQ_OFF_TIMEOUT_LATCH
VOUT_UV_FAULT VOUT_OV_WARN_LATCH SYSTEM_WATCHDOG_TIMEOUT_LATCH

When GPO is set to POWER_GOOD, this POWER_GOOD state is based on the actual voltage measurement on the monitor pins assigned to those rails. For a rail that does not have a monitor pin, or have a monitor pin but without voltage monitoring, its POWER_GOOD state is used by sequencing purpose only, and is not be used by the GPO logic evaluation.
