6 Pin Configuration and Functions

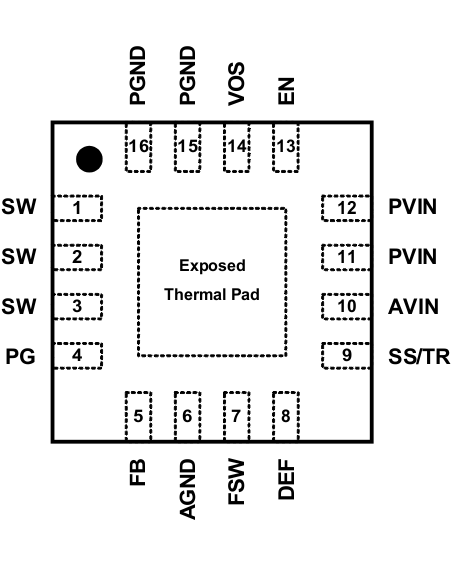

GUID-C240E33A-C645-4DED-9CD8-7155146BBD04-low.gifFigure 6-1 16-Pin VQFN With Thermal PadRGT Package(Top View)
Table 6-1 Pin Functions
PIN(1) I/O DESCRIPTION
NO. NAME
1,2,3 SW O Switch node, which is connected to the internal MOSFET switches. Connect the inductor between SW and output capacitor.
4 PG O Output power good (high = VOUT ready, low = VOUT below nominal regulation); open drain (requires pullup resistor)
5 FB I Voltage feedback of the adjustable version. Connect a resistive voltage divider to this pin. It is recommended to connect FB to AGND on fixed output voltage versions for improved thermal performance.
6 AGND Analog Ground. Must be connected directly to the exposed thermal pad and common ground plane.
7 FSW I Switching Frequency Select (low is approximately 2.5 MHz, high is approximately 1.25 MHz(2) for typical operation)(3)
8 DEF I Output Voltage Scaling (low = nominal, high = nominal + 5%)(3)
9 SS/TR I Soft-Start / Tracking Pin. An external capacitor connected to this pin sets the internal voltage reference rise time. It can be used for tracking and sequencing.
10 AVIN I Supply voltage for control circuitry. Connect to same source as PVIN.
11,12 PVIN I Supply voltage for power stage. Connect to same source as AVIN.
13 EN I Enable input (high = enabled, low = disabled)(3)
14 VOS I Output voltage sense pin and connection for the control loop circuitry
15,16 PGND Power Ground. Must be connected directly to the exposed thermal pad and common ground plane.
Exposed Thermal Pad Must be connected to AGND (pin 6), PGND (pin 15,16), and common ground plane. See the Layout Example. Must be soldered to achieve appropriate power dissipation and mechanical reliability.
(1) For more information about connecting pins, see Section 8 and Section 9.
(2) Connect FSW to VOUT or PG in this case.
(3) An internal pulldown resistor keeps logic level low, if pin is floating.
