5.9 Typical Characteristics: VS = 28 V

At TA ≅ 25°C, AV = 10 V/V, RF = 1.24 kΩ, RL = 100 Ω, RS = 2.5 Ω, RADJ = 0 Ω, full-bias mode (unless otherwise noted).

THS6212 Small-Signal Frequency Response
VO = 2 VPP
Figure 5-37 Small-Signal Frequency Response
THS6212 Large-Signal Frequency Response vs VO
AV = 10 V/V
Figure 5-39 Large-Signal Frequency Response vs VO
THS6212 Large-Signal Frequency Response vs Bias Modes
VO = 40 VPP
Figure 5-41 Large-Signal Frequency Response vs Bias Modes
THS6212 Harmonic Distortion vs Frequency
VO = 2 VPP
Figure 5-43 Harmonic Distortion vs Frequency
THS6212 Harmonic Distortion vs VO
f = 1 MHz, RL = 50 Ω
Figure 5-45 Harmonic Distortion vs VO
THS6212 Harmonic Distortion vs RL
f = 1 MHz, VO = 2 VPP
Figure 5-47 Harmonic Distortion vs RL
THS6212 Small-Signal Pulse Response
VO step = 2 VPP
Figure 5-49 Small-Signal Pulse Response
THS6212 Quiescent Current vs RADJ
Figure 5-51 Quiescent Current vs RADJ
THS6212 Small-Signal Frequency Response vs RF
VO = 2 VPP
Figure 5-38 Small-Signal Frequency Response vs RF
THS6212 Large-Signal Frequency Response vs VO
AV = 15 V/V
Figure 5-40 Large-Signal Frequency Response vs VO
THS6212 Intermodulation Distortion vs Frequency
Figure 5-42 Intermodulation Distortion vs Frequency
THS6212 Harmonic Distortion vs Gain
f = 1 MHz, VO = 2 VPP RL = 50 Ω
Figure 5-44 Harmonic Distortion vs Gain
THS6212 Harmonic Distortion vs VO
f = 10 MHz, RL = 50 Ω
Figure 5-46 Harmonic Distortion vs VO

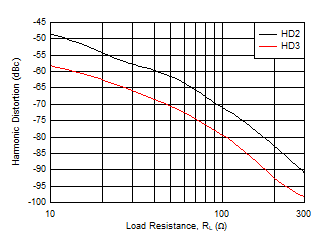

THS6212 Harmonic Distortion vs RL
f = 10 MHz, VO = 2 VPP
Figure 5-48 Harmonic Distortion vs RL
THS6212 Large-Signal Pulse Response
VO step = 40 VPP
Figure 5-50 Large-Signal Pulse Response
