Typical Characteristics: TPS7A8301A

at TA = 25°C, VIN = 1.4 V or VIN = VOUT(nom) + 0.3 V (whichever is greater), VBIAS = open, VOUT(nom) = 0.8 V, VEN = 1.1 V, CIN = 10 μF, COUT = 22 μF, CNR/SS = 0 nF, CFF = 0 nF, and PG pin pulled up to VIN with 100 kΩ (unless otherwise noted)

VIN = 1.1 V, VBIAS = 5 V, COUT = 22 μF, CNR/SS = 10 nF,
CFF = 10 nF
Figure 7-43 PSRR vs Frequency and IOUT
IOUT = 1 A, COUT = 22 μF, CNR/SS = 10 nF, CFF = 10 nF

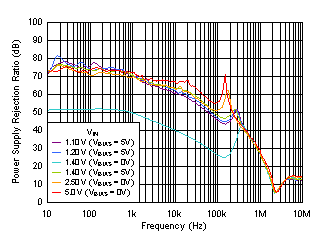

Figure 7-45 PSRR vs Frequency and VIN
VIN = VOUT + 0.3 V or VIN = 1.1 V (whichever is greater) and VBIAS = 5 V for VOUT ≤ 2.2 V,
COUT = 47 μF || 10μF || 10μF, CNR/SS = 10 nF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 7-47 Output Voltage Noise vs VOUT
VIN = 1.1 V, VBIAS = 3 V
Figure 7-49 Dropout Voltage vs Output Current With BIAS
VIN = 1.4 V
Figure 7-51 Load Regulation
VIN = 5.55 V, VOUT = 5.15 V
Figure 7-53 Load Regulation (5-V Output)
VOUT = 0.5 V, VIN = 1.1 V, IOUT = 5 mA, VBIAS = 5 V
Figure 7-55 Line Regulation With BIAS
VBIAS = 0 V, IOUT = 5 mA
Figure 7-57 Ground Pin Current vs Input Voltage
VBIAS = 0 V

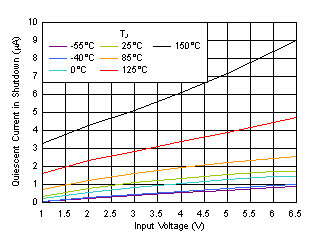

Figure 7-59 Shutdown Current vs Input Voltage
VBIAS = 0 V
Figure 7-61 INR/SS Current vs Input Voltage
VIN = 1.1 V
Figure 7-63 VBIAS UVLO vs Temperature

Figure 7-65 PG Voltage vs PG Current Sink

Figure 7-67 PG Threshold vs Temperature
VIN = 1.4 V, IOUT = 1 A, COUT = 22 μF, CNR/SS = 10 nF,
CFF = 10 nF

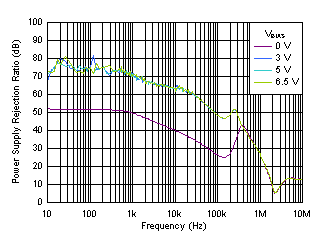

Figure 7-44 PSRR vs Frequency and VBIAS
VIN = 5.5 V, VOUT = 5 V, COUT = 47 μF || 10 μF || 10μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 7-46 PSRR vs Frequency and IOUT (VOUT = 5 V)
VIN = 1.4 V



Figure 7-48 Dropout Voltage vs Output Current Without BIAS
VIN = 5.5 V
Figure 7-50 Dropout Voltage vs Output Current (High VIN)
VIN = 3.8 V
Figure 7-52 Load Regulation (3.3-V Output)
VOUT = 0.5 V, IOUT = 5 mA

Figure 7-54 Line Regulation vs VIN
IOUT = 5 mA
Figure 7-56 Line Regulation vs VIN (5.2-V Output)
VIN = 1.1 V, IOUT = 5 mA
Figure 7-58 BIAS Pin Current vs Bias Voltage
VIN = 1.1 V
Figure 7-60 Shutdown Current vs Bias Voltage

Figure 7-62 VIN UVLO vs Temperature
VIN = 1.4 V, 6.5 V
Figure 7-64 Enable Threshold vs Temperature
VIN = 6.5 V
Figure 7-66 PG Voltage vs PG Current Sink
