Typical Characteristics: TPS7A8300A

at TA = 25°C, VIN = 1.4 V or VIN = VOUT(nom) + 0.3 V (whichever is greater), VBIAS = open, VOUT(nom) = 0.8 V, VEN = 1.1 V, CIN = 10 μF, COUT = 22 μF, CNR/SS = 0 nF, CFF = 0 nF, and PG pin pulled up to VIN with 100 kΩ (unless otherwise noted)

VIN = 1.1 V, VBIAS = 5 V, COUT = 22 μF, CNR/SS = 10 nF,
CFF = 10 nF

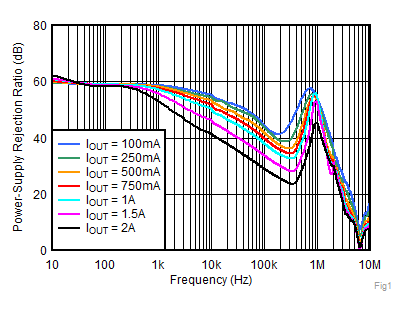

Figure 7-1 PSRR vs Frequency and IOUT
VIN = 1.4 V, IOUT = 1 A, COUT = 22 μF, CNR/SS = 10 nF,
CFF = 10 nF

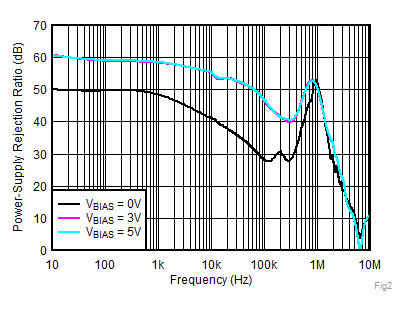

Figure 7-3 PSRR vs Frequency and VBIAS
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT = 2 A, COUT = 22 μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 7-5 PSRR vs Frequency and VOUT With BIAS
VIN = VOUT + 0.3 V, VOUT = 1 V, VBIAS = 5 V, IOUT = 2 A,
CNR/SS = 10 nF, CFF = 10 nF

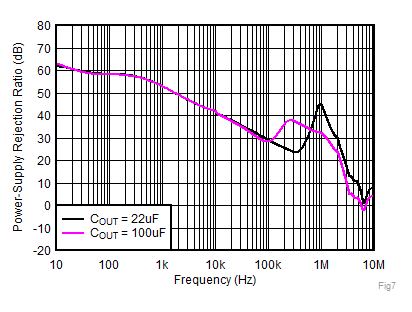

Figure 7-7 PSRR vs Frequency and COUT

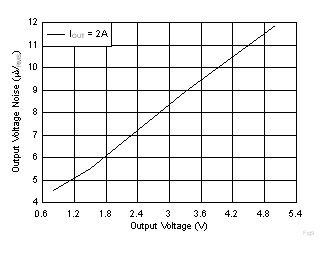

VIN = VOUT + 0.3 V and VBIAS = 5 V for VOUT ≤ 2.2 V,
COUT = 22 μF, CBIAS = 10 μF, CNR/SS = 10 nF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 7-9 Output Voltage Noise vs Output Voltage
IOUT = 2 A, COUT = 22 μF, CNR/SS = 10 nF, CFF = 10 nF,
RMS noise BW = 10 Hz to 100 kHz

Figure 7-11 Output Noise vs Frequency and Input Voltage
VIN = 5.3 V, VOUT = 5 V, VBIAS = 5 V, IOUT = 2 A, COUT = 22 μF,
CBIAS = 10 μF, CNR/SS = 10 nF,
RMS noise BW = 10 Hz to 100 kHz
Figure 7-13 Output Noise vs Frequency and CFF
VIN = 1.2 V, VOUT = 0.9 V, VBIAS = 5 V, IOUT = 2 A,
COUT = 22 μF, CBIAS = 10 μF, CFF = 10 nF
Figure 7-15 Start-Up Waveform vs Time and CNR/SS
IOUT, DC = 100 mA, COUT = 22 μF, CNR/SS = CFF = 10 nF,
slew rate = 1 A/μs
Figure 7-17 Load Transient vs Time for VOUT = 5 V
VIN = 5.3 V, VBIAS = 5 V, COUT = 22 μF, CBIAS = 10 μF,
VOUT = 5 V, CNR/SS = CFF = 10 nF, slew rate = 1 A/μs

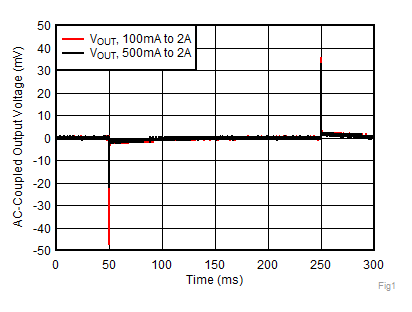

Figure 7-19 Load Transient vs Time and DC Load
IOUT = 2 A, VBIAS = 6.5 V

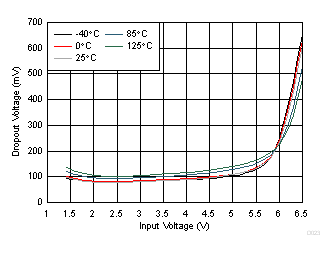

Figure 7-21 Dropout Voltage vs Input Voltage With BIAS
VIN = 1.1 V, VBIAS = 3 V

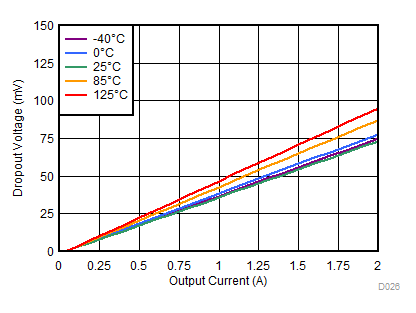

Figure 7-23 Dropout Voltage vs Output Current With BIAS
IOUT = 100 mA to 2 A
Figure 7-25 Load Regulation vs Output Voltage
VIN = 3.8 V
Figure 7-27 Load Regulation (3.3-V Output)
VOUT = 0.8 V, IOUT = 5 mA

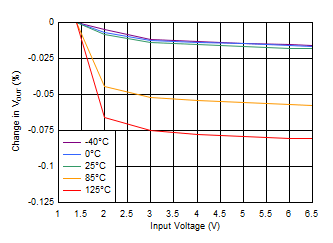

Figure 7-29 Line Regulation
IOUT = 5 mA
Figure 7-31 Line Regulation (5-V Output)
VIN = 1.1 V, IOUT = 5 mA
Figure 7-33 BIAS Pin Current vs Bias Voltage
VIN = 1.1 V
Figure 7-35 Shutdown Current vs Bias Voltage

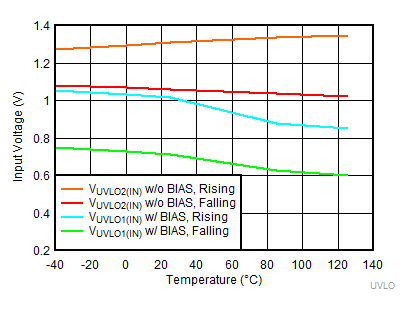

Figure 7-37 VIN UVLO vs Temperature

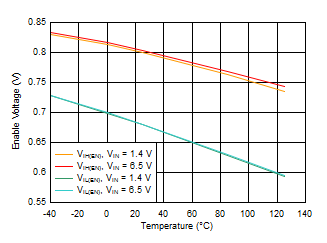

VIN = 1.4 V, 6.5 V
Figure 7-39 Enable Threshold vs Temperature
VIN = 6.5 V
Figure 7-41 PG Voltage vs PG Current Sink
IOUT = 2 A, VBIAS = 5 V, COUT = 22 μF, CNR/SS = 10 nF,
CFF = 10 nF
Figure 7-2 PSRR vs Frequency and VIN With BIAS
IOUT = 1 A, COUT = 22 μF, CNR/SS = 10 nF, CFF = 10 nF

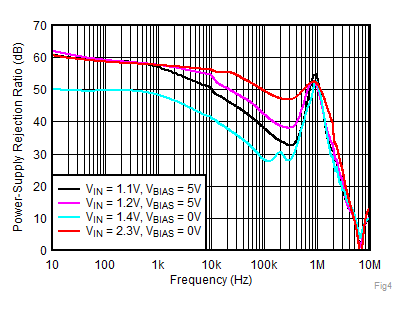

Figure 7-4 PSRR vs Frequency and VIN
IOUT = 2 A, COUT = 22 μF, CNR/SS = 10 nF, CFF = 10 nF

Figure 7-6 PSRR vs Frequency and VIN for VOUT = 3.3 V
VIN = VOUT + 0.3 V, VOUT = 1 V, IOUT = 2 A,
COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF
Figure 7-8 VBIAS PSRR vs Frequency

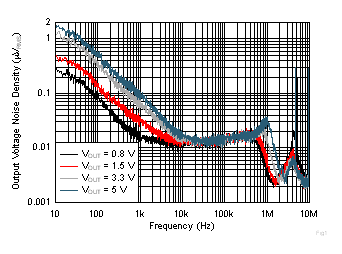

VIN = VOUT + 0.3 V and VBIAS = 5 V for VOUT ≤ 2.2 V,
IOUT = 2 A, COUT = 22 μF, CBIAS = 10 μF, CNR/SS = 10 nF,
CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 7-10 Output Noise vs Frequency and Output Voltage
VIN = 1.1 V, VOUT = 0.8 V, VBIAS = 5 V, IOUT = 2 A,
COUT = 22 μF, CBIAS = 10 μF, CFF = 10 nF,
RMS noise BW = 10 Hz to 100 kHz
Figure 7-12 Output Noise vs Frequency and CNR/SS
IOUT = 2 A, COUT = 22 μF, CFF = 10 nF,
RMS noise BW = 10 Hz to 100 kHz

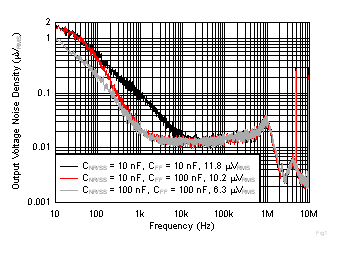

Figure 7-14 Output Noise at 5-V Output

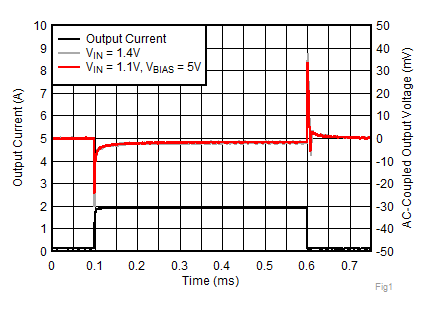

IOUT, DC = 100 mA, slew rate = 1 A/μs, CNR/SS = 10 nF,
COUT = 22 μF, CBIAS = 10 μF
Figure 7-16 Load Transient vs Time for VOUT = 0.8 V
VOUT = 5 V, IOUT, DC = 100 mA, IOUT = 100 mA to 2 A,
COUT = 22 μF, CNR/SS = CFF = 10 nF

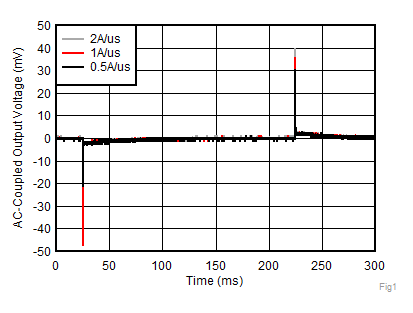

Figure 7-18 Load Transient vs Time and Slew Rate
IOUT = 2 A

Figure 7-20 Dropout Voltage vs Input Voltage Without BIAS
VIN = 1.4 V

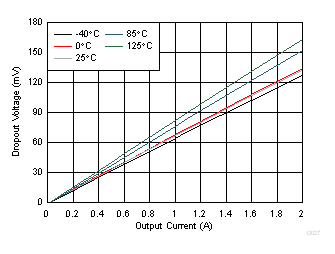

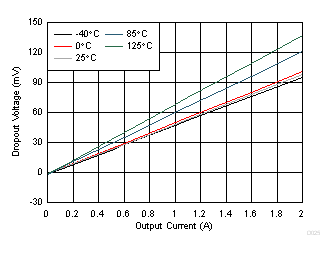

Figure 7-22 Dropout Voltage vs Output Current Without BIAS
VIN = 5.5 V
Figure 7-24 Dropout Voltage vs Output Current (High VIN)
VIN = 1.4 V

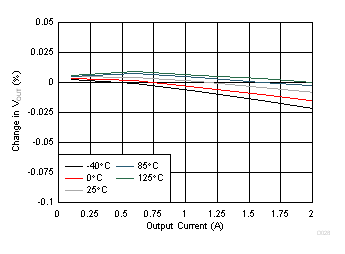

Figure 7-26 Load Regulation
VIN = 5.5 V
Figure 7-28 Load Regulation (5-V Output)
VOUT = 0.8 V, VIN = 1.1 V, IOUT = 5 mA, VBIAS = 5 V
Figure 7-30 Line Regulation With BIAS
VBIAS = 0 V, IOUT = 5 mA

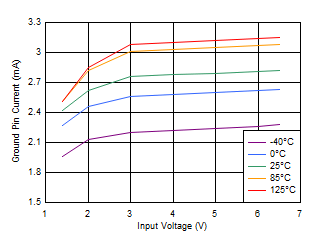

Figure 7-32 Ground Pin Current vs Input Voltage
VBIAS = 0 V
Figure 7-34 Shutdown Current vs Input Voltage
VBIAS = 0 V
Figure 7-36 INR/SS Current vs Input Voltage
VIN = 1.1 V
Figure 7-38 VBIAS UVLO vs Temperature

Figure 7-40 PG Voltage vs PG Current Sink

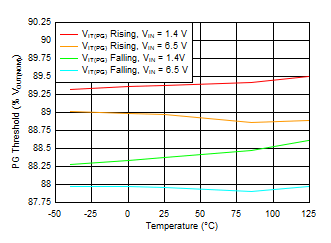

Figure 7-42 PG Threshold vs Temperature
