Typical Characteristics

TPS92612-Q1 D001-IOUT-SUPPLY-SLDS233.gif
Figure 2. Output Current vs Supply Voltage
TPS92612-Q1 D002-IOUT-VDROP-SLDS233.gif
TA = 25 °C
Figure 4. Output Current vs Dropout Voltage
TPS92612-Q1 D004-IQ-SUPPLY-SLDS237.gif
Figure 6. Quiescent Current vs Input Voltage
TPS92612-Q1 typ-app-pwm-dimming-external-input-slds237.gif
Ch. 1 = V(SUPPLY) Ch. 2 = V(PWM) Ch. 3 = I(OUT)
Ch. 4 = V(OUT) ƒ(PWM) = 200 Hz Duty-cycle = 50%
Figure 8. PWM Dimming via External Input
TPS92612-Q1 sys-transient-undervoltage-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 10. Transient Undervoltage
TPS92612-Q1 sys-jump-start-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 12. Jump Start
TPS92612-Q1 sys-superimposed-alternating-voltage-1k-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 14. Superimposed Alternating Voltage, 1kHz

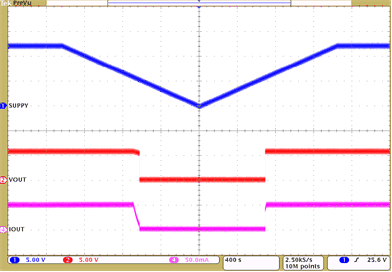

TPS92612-Q1 sys-slow-decrease-and-increase-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 16. Slow Decrease and Slow Increase of Supply Voltage
TPS92612-Q1 typ-app-led-short-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 18. LED Short-Circuit Protection and Recovery
TPS92612-Q1 D001-IOUT-RES.gif
Figure 3. Output Current vs Current-Sense Resistor
TPS92612-Q1 D003-VDROP-TEMP-SLDS233.gif
I(OUT) setting = 150 mA
Figure 5. Output Current vs Temperature
TPS92612-Q1 D005-PWMIN-OUT-SLDS233.gif
Figure 7. PWM Output Duty Cycle vs Input Duty Cycle
TPS92612-Q1 typ-app-pwm-dimming-bcm-input-slds237.gif
Ch. 1 = V(SUPPLY) Ch. 3 = V(OUT) Ch. 4 = I(OUT)
f(PWM) = 200 Hz Duty-cycle = 10%
SUPPLY dimming between 2.5 V and 12 V
Figure 9. PWM Dimming via Power Supply
TPS92612-Q1 sys-transient-overvoltage-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 11. Transient Overvoltage
TPS92612-Q1 sys-superimposed-alternating-voltage-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 13. Superimposed Alternating Voltage, 15 Hz

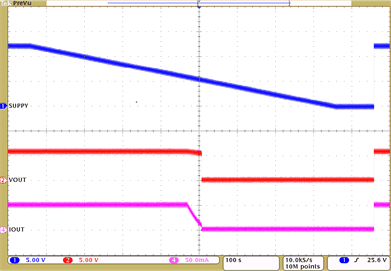

TPS92612-Q1 sys-slow-decrease-quick-increase-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 15. Slow Decrease, Quick Increase of Supply Voltage
TPS92612-Q1 typ-app-led-open-circuit-slds237.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 4 = I(OUT)
Figure 17. LED Open-Circuit and Recovery
