10.2.2 Application Curves

Unless otherwise specified the following conditions apply: VIN = 24 V, TA = 25°C. The circuit is shown in Figure 18, with the appropriate BOM from Table 3.

LMR36006 LMR36006B-5vout-efficiency-snvsb48.gif
VOUT = 5 V 1000 kHz
Figure 21. Efficiency
LMR36006 LMR36006B-5vout-load-reg-snvsb48.gif
VOUT = 5 V 1000 kHz
Figure 23. Load Regulation
LMR36006 D003-tc-drop-out-down-snvsay7-rtm.gif
VOUT = 5 V 1000 kHz
Figure 25. Overall Dropout Characteristic
LMR36006 LMR36006B_Input_Current.gif
VOUT = 3.3 V IOUT= 0 A RFBT= 100 kΩ
Figure 27. Input Supply Current
LMR36006 waveform-01-LMR36006B-24vin-5vout-start-up-snvsb48.jpg
VOUT = 5 V 1000 kHz
Figure 29. Start-Up Waveform
LMR36006 waveform-03-LMR36006B-5vout-24vin-lt-600ma-snvsb48.jpg
VOUT = 5 V 1000 kHz ILOAD= 10 mA - 0.6 A
Slew Rate = 1 µs/A
Figure 31. Load Transient
LMR36006 conducted_low.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 150kHz to 30 MHz
Figure 33. Conducted EMI vs. CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
LMR36006 rod.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 150 kHz to 30 MHz
Figure 35. Radiated EMI Rod vs. CISPR25 Limits
LMR36006 bicon_horizontal.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 30 MHz to 200 MHz
Figure 37. Radiated EMI Bicon Horizontal vs. CISPR25 Limits
LMR36006 log_horizaontal.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 200 MHz to 1 GHz
Figure 39. Radiated EMI Log Horizontal vs. CISPR25 Limits
LMR36006 horn_horizontal.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 1.8 GHz to 2.5 GHz
Figure 41. Radiated EMI Horn Horizontal vs. CISPR25 Limits
LMR36006 LMR36006B-3p3vout-efficiency-snvsb48-rtm.gif
VOUT = 3.3 V 1000 kHz
Figure 22. Efficiency
LMR36006 LMR36006B-3p3vout-load-reg-snvsb48.gif
VOUT = 3.3 V 1000 kHz
Figure 24. Load Regulation
LMR36006 LMR36006B-dropout.gif
VOUT = 5 V 1000 kHz
Figure 26. Frequency Dropout Characteristic
LMR36006 LMR36006B-PFM-CCM.gif
VOUT = 3.3 V 1000 kHz
Figure 28. Mode Change Thresholds
LMR36006 waveform-10-LMR36006B-3p3vout-24vin-su-snvsb48.jpg
VOUT = 3.3 V 1000 kHz
Figure 30. Start-Up Waveform
LMR36006 waveform-08-LMR36006C-24vin-lt-600ma-5vout-snvsb48.jpg
VOUT = 3.3 V 1000 kHz ILOAD= 10 mA - 0.6 A
Slew Rate = 1 µs/A
Figure 32. Load Transient
LMR36006 conducted_high.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 34. Conducted EMI vs. CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
LMR36006 bicon_vert.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 30 MHz to 200 MHz
Figure 36. Radiated EMI Bicon Vertical vs. CISPR25 Limits

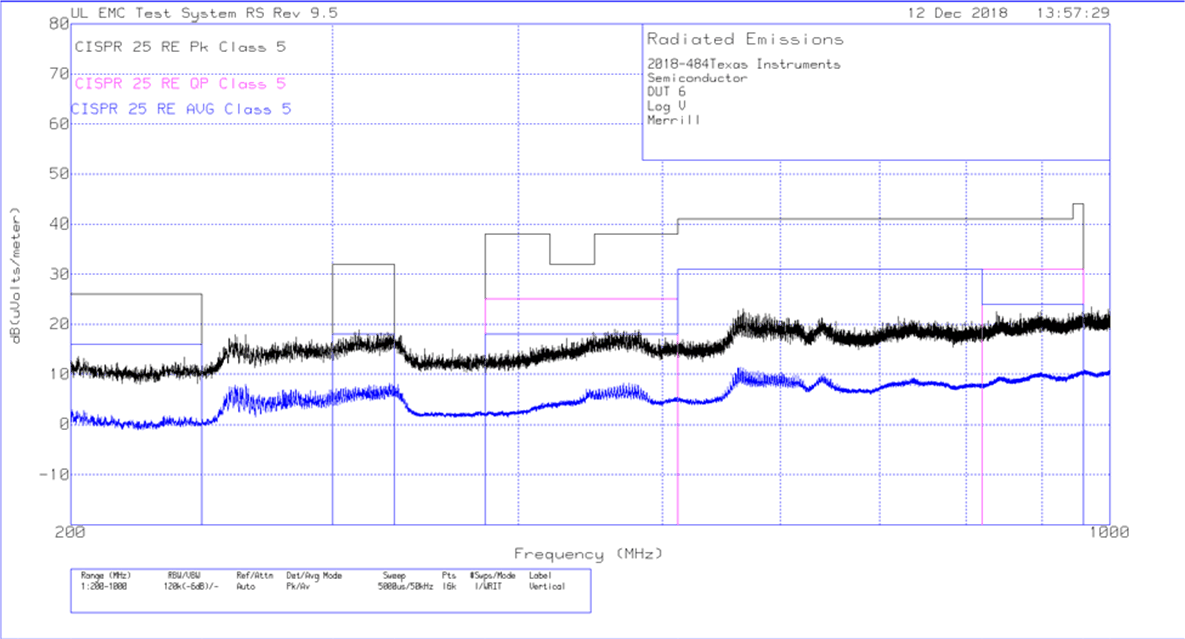

LMR36006 log_vertical.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 200 MHz to 1 GHz
Figure 38. Radiated EMI Log Vertical vs. CISPR25 Limits
LMR36006 horn_vertical.gif
VIN = 13.5 V VOUT = 5 V IOUT = 1.5 A
Frequency Tested: 1.83 GHz to 2.5 GHz
Figure 40. Radiated EMI Horn Vertical vs. CISPR25 Limits
LMR36006 lmr342xx-emi-schematic-snvsba9.gif
Figure 42. Recommended Input EMI Filter
