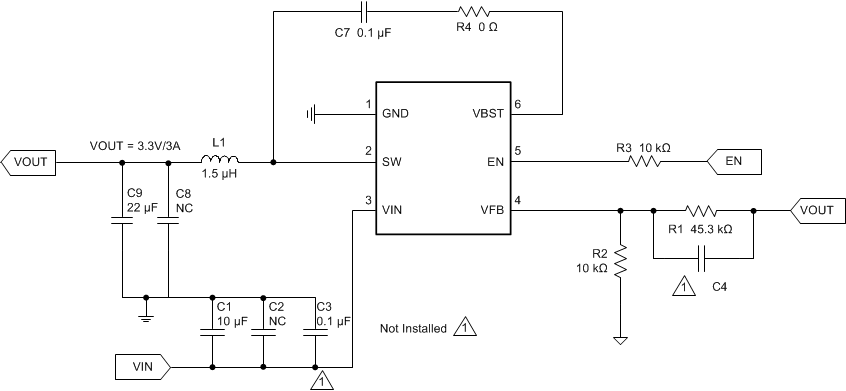

The application schematic in Figure 17 was developed to meet the previous requirements. This circuit is available as the evaluation module (EVM). The sections provide the design procedure.
Figure 17 shows the TPS563249 6.5-V to 17-V input, 3.3-V output converter schematic.
