11.2.4.2 Detailed Design Procedure

Using the requirements above follow the procedure from Detailed Design Procedure to design the TPS6507x for the OMAP-35xx.

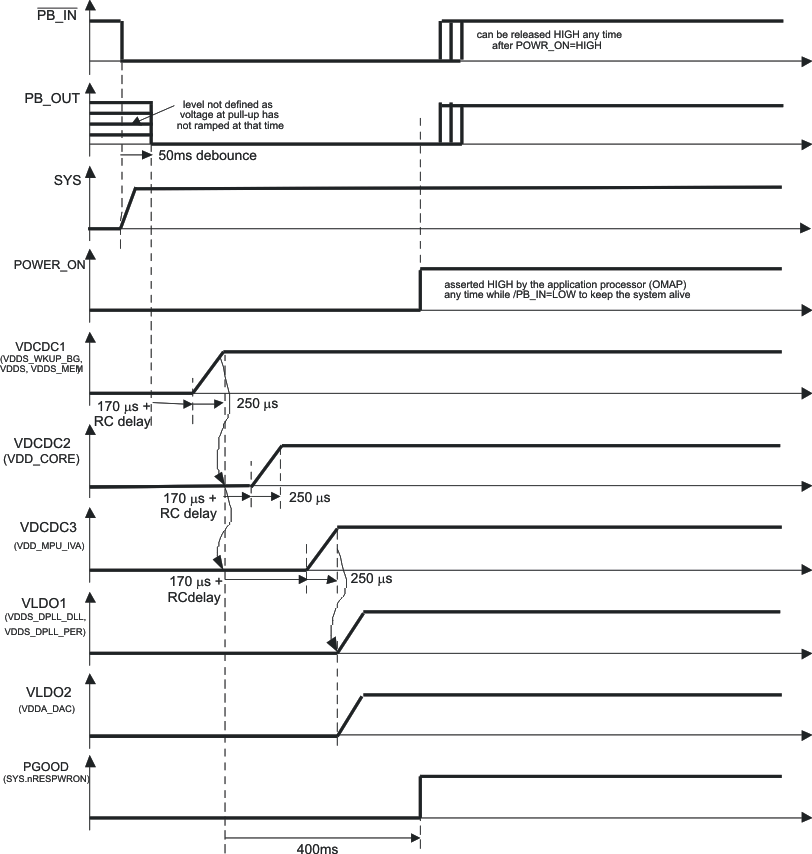

TPS65070 TPS65072 TPS65073 TPS650731 TPS650732 sys2_off_lvs950.gifFigure 57. OMAP35xx Sequence (Supporting SYS-OFF Mode)
